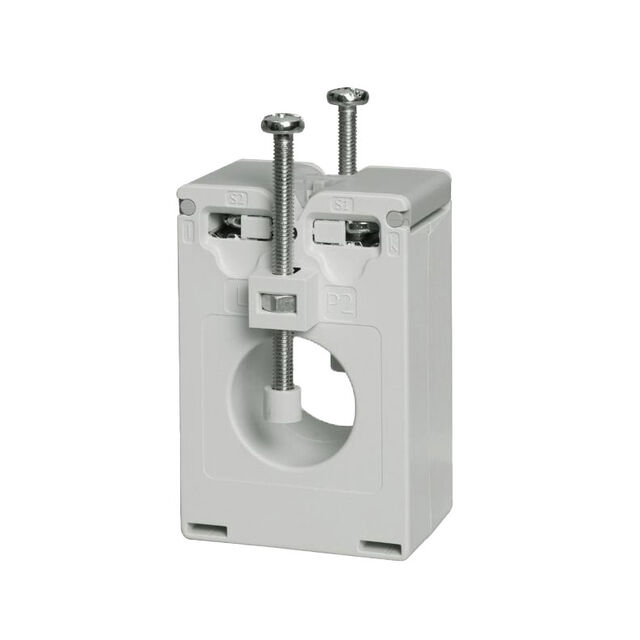

CTD1X1505AXXX
ActiveCARLO GAVAZZI
CURRENT TRANSFORMER REV.17
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CTD1X1505AXXX
ActiveCARLO GAVAZZI
CURRENT TRANSFORMER REV.17
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CTD1X1505AXXX |
|---|---|
| Current Rating (Amps) | 150 A |
| Frequency Range [Max] | 62 Hz |
| Frequency Range [Min] | 48 Hz |
| Height - Seated (Max) [Max] | 2.567 in |
| Height - Seated (Max) [Max] | 65.2 mm |
| Mounting Type | DIN Rail |
| Size / Dimension | 46 mm, 44 mm |
| Size / Dimension [x] | 1.811 " |
| Size / Dimension [y] | 1.732 in |
| Termination Style | Terminal Block |
| Type | Non-Invasive (Solid Core) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 61.85 | |
| 10 | $ 55.58 | |||
| 25 | $ 53.91 | |||
| 50 | $ 52.87 | |||
| 100 | $ 51.99 | |||
Description
General part information
CTD1X1505AXXX
150 A Current Sense Transformer 48Hz ~ 62Hz DIN Rail
