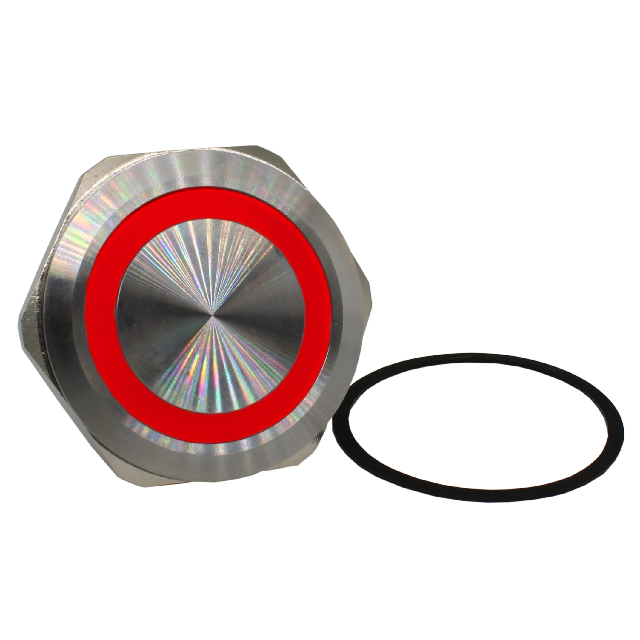

DH402LBSR12
ActiveCIT Relay and Switch
SWITCH PB DPST-NO/NC 2A 125VAC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DH402LBSR12
ActiveCIT Relay and Switch
SWITCH PB DPST-NO/NC 2A 125VAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DH402LBSR12 |
|---|---|
| Actuator Type | Flush, Button, Round |
| Circuit | DPST-NO/NC |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 2 A |
| Electrical Life | 50000 Cycles |
| Features | Stainless Steel |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 12 VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 40 mm |
| Switch Function | On-Off, Off-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 5 | $ 47.29 | |
Description
General part information
DH402LBSR12
Pushbutton Switch DPST-NO/NC Anti-Vandal, Illuminated Panel Mount, Front
