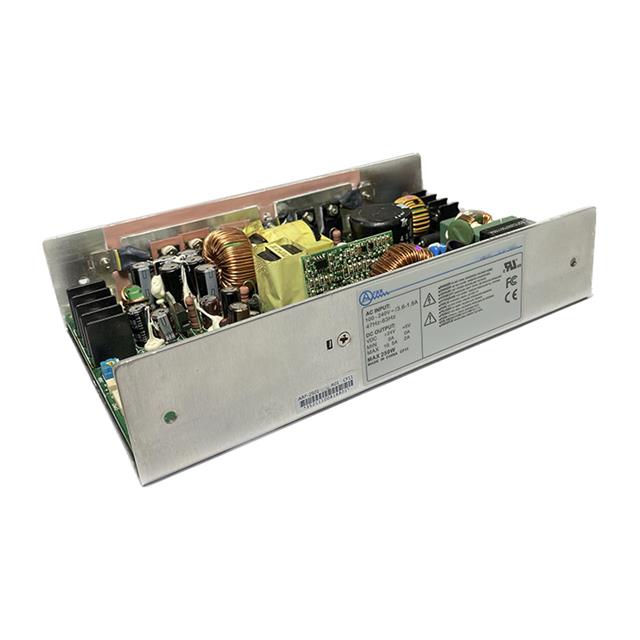

ARF-2501-10
ActiveAras Power Technologies
AC/DC CONVERTER 15V 251W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ARF-2501-10
ActiveAras Power Technologies
AC/DC CONVERTER 15V 251W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ARF-2501-10 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cTUVus |
| Current - Output 1 | 16.7 A |
| Efficiency | 80 % |
| Features | Remote Sense, Standby Output, PFC, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 251 W |
| Size / Dimension [x] | 8 " |
| Size / Dimension [x] | 203.2 mm |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [y] | 5 " |
| Size / Dimension [z] | 44.5 mm |
| Size / Dimension [z] | 1.75 " |
| Standard Number | 60950-1 |
| Type | Open Frame |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 45.00 | |
Description
General part information
ARF-2501-10
Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
