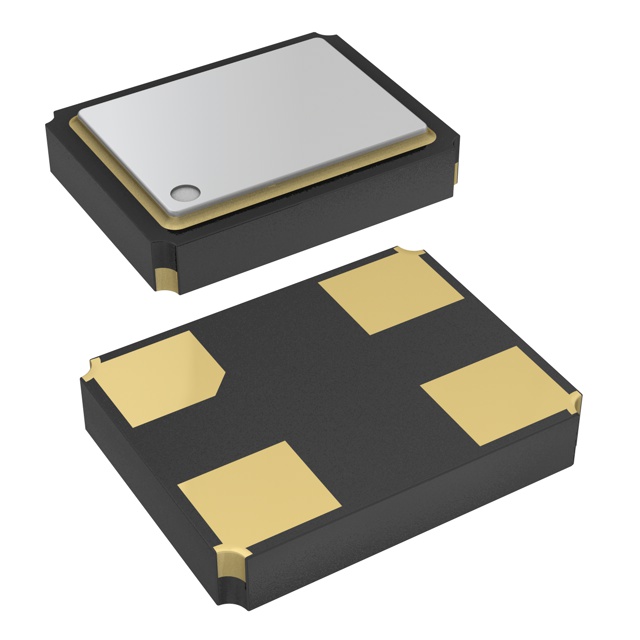

FL2500151
ActiveDiodes Inc
CRYSTAL 25MHZ FUND 60OHM 4-PIN MINI-CSMD
Deep-Dive with AI
Search across all available documentation for this part.
FL2500151
ActiveDiodes Inc
CRYSTAL 25MHZ FUND 60OHM 4-PIN MINI-CSMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FL2500151 |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Frequency | 25 MHz |
| Frequency Stability | 20 ppm |
| Frequency Tolerance | 15 ppm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Height - Seated (Max) [Max] [z] | 0.78 mm |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.53 | |||
| 50 | $ 0.48 | |||
| 100 | $ 0.42 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.34 | |||
| Digi-Reel® | 1 | $ 0.61 | ||
| 10 | $ 0.52 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.45 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.39 | |||
| Tape & Reel (TR) | 3000 | $ 0.32 | ||
| 6000 | $ 0.31 | |||
| 15000 | $ 0.30 | |||
Description
General part information
FL2500151
25 MHz ±15ppm Crystal 18pF 50 Ohms 4-SMD, No Lead
Documents
Technical documentation and resources
