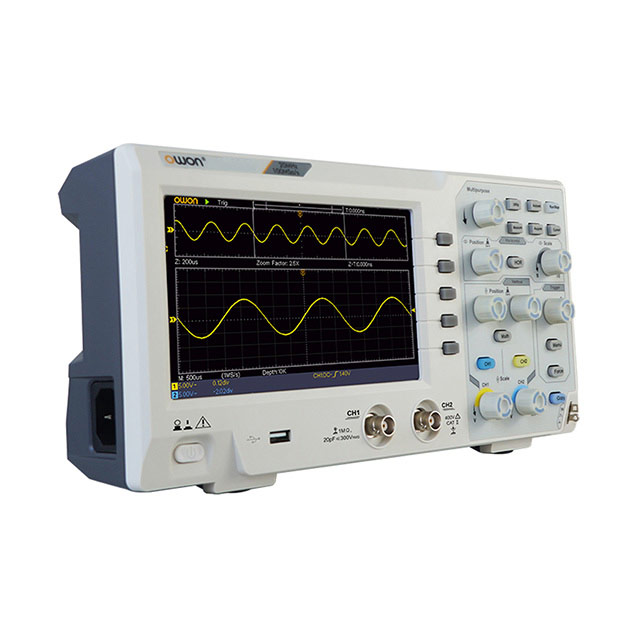

SDS1022
ActiveOwon Technology Lilliput Electronics (USA) Inc
O-SCOPE 20MHZ 2 CH 100MS/S
Deep-Dive with AI
Search across all available documentation for this part.
SDS1022
ActiveOwon Technology Lilliput Electronics (USA) Inc
O-SCOPE 20MHZ 2 CH 100MS/S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDS1022 |
|---|---|
| Channels | 2 |
| Display Type | LCD - Color |
| Function | Record |
| Includes | Probe, Power Cord, USB Cable, Bag, Manual |
| Input Impedance [custom] | 20 pF |
| Input Impedance [custom] | 1 M |
| Interface | USB |
| Memory Size | 10 kpts |
| Probe Type | Passive 10:1 (2) |
| Rise Time (Typ) | 17.5 ns |
| Sampling Rate (Per Second) | 100M |
| Type | Bench |
| Voltage - Input (Max) [Max] | 400 V |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 259.00 | |
Description
General part information
SDS1022
20 MHz Bench Oscilloscopes USB Interface LCD - Color Display 2 Channel 400V Record
Documents
Technical documentation and resources
No documents available
