G3601DG
ActiveMentech Technology USA Inc.
QUAD LAN XFMR 1000 BASE-T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G3601DG
ActiveMentech Technology USA Inc.
QUAD LAN XFMR 1000 BASE-T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G3601DG |
|---|---|
| Height - Seated (Max) [Max] [z] | 12 mm |
| Height - Seated (Max) [Max] [z] | 0.472 " |
| Inductance | 350 µH |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 33.2 mm |
| Size / Dimension [x] | 1.307 " |
| Size / Dimension [y] | 0.35 " |
| Size / Dimension [y] | 8.9 mm |
| Transformer Type | LAN 10/100/1000 Base-T |
| Turns Ratio - Primary:Secondary [custom] | 1CT |
| Turns Ratio - Primary:Secondary [custom] | 1CT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 5 | $ 4.78 | |
| 10 | $ 3.82 | |||
| 100 | $ 2.39 | |||
| 720 | $ 1.91 | |||
| 1440 | $ 1.43 | |||
| 3000 | $ 0.96 | |||
| 9000 | $ 0.72 | |||
Description
General part information

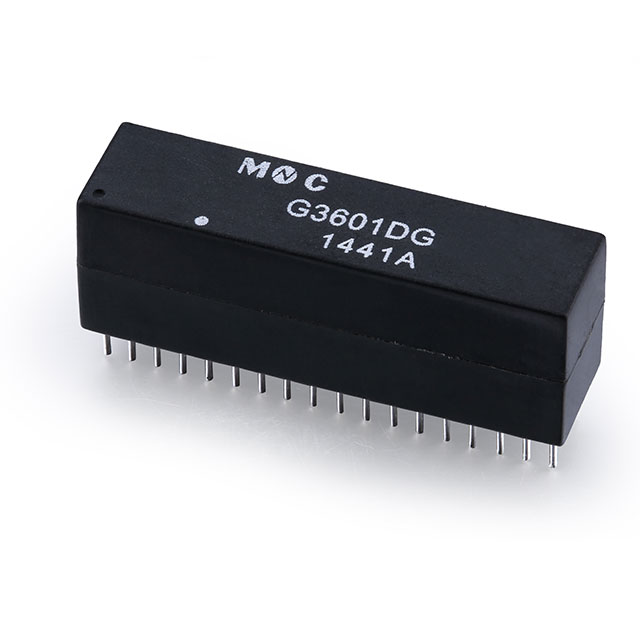

G3601DG
350µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Through Hole
