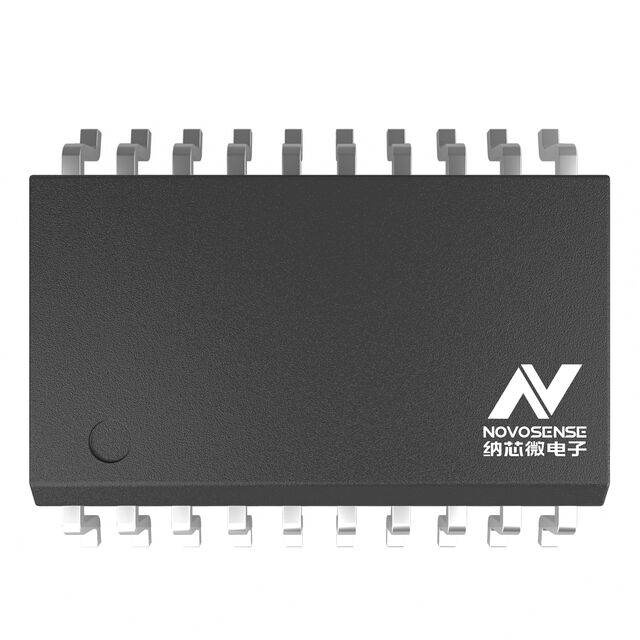

NSIP83086V-DSWTR
ActiveNOVOSENSE
DGTL ISOLTR 5KV 2CH GP 20-SOIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NSIP83086V-DSWTR
ActiveNOVOSENSE
DGTL ISOLTR 5KV 2CH GP 20-SOIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NSIP83086V-DSWTR |
|---|---|
| Channel Type | Unidirectional |
| Common Mode Transient Immunity (Min) [Min] | 150 kV/µs |
| Data Rate | 150 Mbps |
| Inputs - Side 1/Side 2 | 1/1 |
| Isolated Power | False |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 20-SOIC |
| Package / Case [y] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Pulse Width Distortion (Max) | 12 ns, 88 ns |
| Supplier Device Package | 20-SOP |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.45 | |
| 10 | $ 5.76 | |||
| 25 | $ 5.33 | |||
| 100 | $ 4.87 | |||
| 250 | $ 4.65 | |||
| 500 | $ 4.51 | |||
| Digi-Reel® | 1 | $ 7.45 | ||
| 10 | $ 5.76 | |||
| 25 | $ 5.33 | |||
| 100 | $ 4.87 | |||
| 250 | $ 4.65 | |||
| 500 | $ 4.51 | |||
| Tape & Reel (TR) | 1000 | $ 4.40 | ||
| 2000 | $ 4.31 | |||
Description
General part information
NSIP83086V-DSWTR
General Purpose Digital Isolator 5000Vrms 2 Channel 150Mbps 150kV/µs CMTI 20-SOIC (0.295", 7.50mm Width)
