Technical Specifications
Parameters and characteristics for this part
| Specification | 169-60304 |
|---|---|
| Abrasion Protection | Abrasion Resistant |
| Color | Gray |
| Diameter - Inside [diameter] | 0.38 in |
| Diameter - Inside [diameter] | 9.65 mm |
| Diameter - Outside [diameter] | 13.36 mm |
| Diameter - Outside [diameter] | 0.526 in |
| Environment Protection | UV Resistant |
| Heat Protection | Heat Resistant |
| Length | 1900 ft |
| Length | 579.12 m |
| Liquid Protection | Fluid Resistant |
| Material | Polyethylene (PE) |
| Material Flammability Rating | UL94 V-2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Type | Protective Hose, Wire Loom |
| Type Attributes | Convoluted, Corrugated |
| Wall Thickness | 0.13 mm |
| Wall Thickness | 0.005 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
169-60304

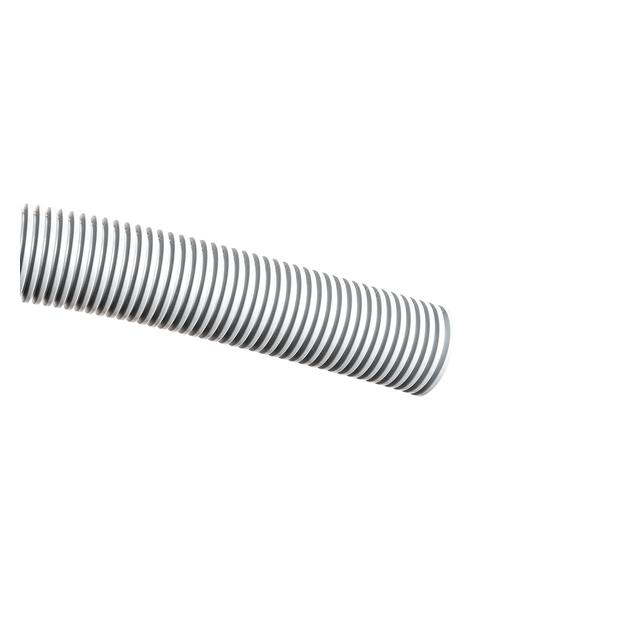

Gray Polyethylene (PE) Convoluted, Corrugated Wire Loom, Protective Hose 0.380" (9.65mm) 1900' (579.12m)
