JAZZ-EC-PO
ActiveOrient Display
COLOR LCD GLASS 3.5DIG TN+ REFL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JAZZ-EC-PO
ActiveOrient Display
COLOR LCD GLASS 3.5DIG TN+ REFL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JAZZ-EC-PO |
|---|---|
| Background Color | Orange |
| Character Format | 7-Segment |
| Character Size [y] | 7 mm |
| Character Size [z] | 12.7 mm |
| Display Format [x] | 3.5 |
| Display Format [y] | 1 |
| Display Mode | Reflective |
| Display Type | TN - Twisted Nematic |
| Number of Characters | 3.5 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 50.8 mm |
| Outline L x W x H [y] | 30.48 mm |
| Outline L x W x H [z] | 3 mm |
| Text Color | Dark |
| Viewing Area [x] | 45.8 mm |
| Viewing Area [y] | 17.86 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.96 | |
Description
General part information
JAZZ-EC-PO

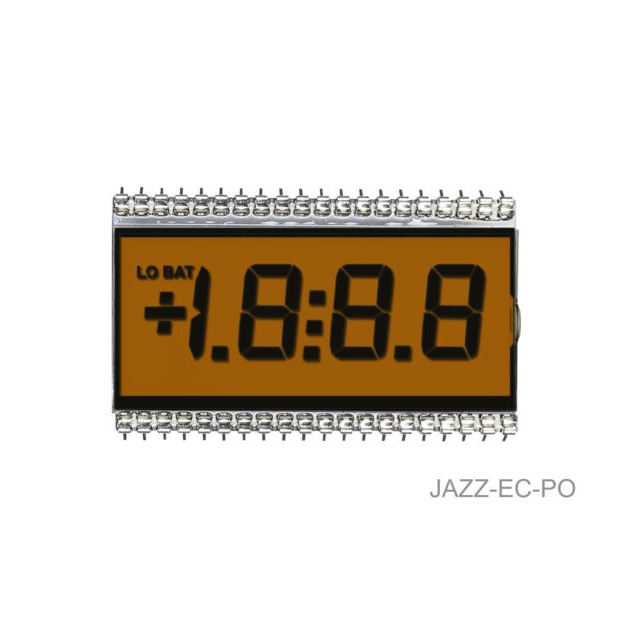

Character Display Module Reflective 7-Segment TN - Twisted Nematic 50.80mm x 30.48mm x 3.00mm
