MGDSK04QE
ActiveGaia Converter
DC DC CONVERTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MGDSK04QE |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 330 mA |
| Efficiency | 80 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 203 °F |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 8 Leads |
| Power (Watts) | 4 W |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [y] | 0.79 " |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [z] | 7.8 mm |
| Size / Dimension [z] | 0.31 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 140 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 67.79 | |
| 6 | $ 64.98 | |||
| 12 | $ 63.93 | |||
| 27 | $ 62.71 | |||
| 51 | $ 61.77 | |||
| 102 | $ 60.77 | |||
Description
General part information

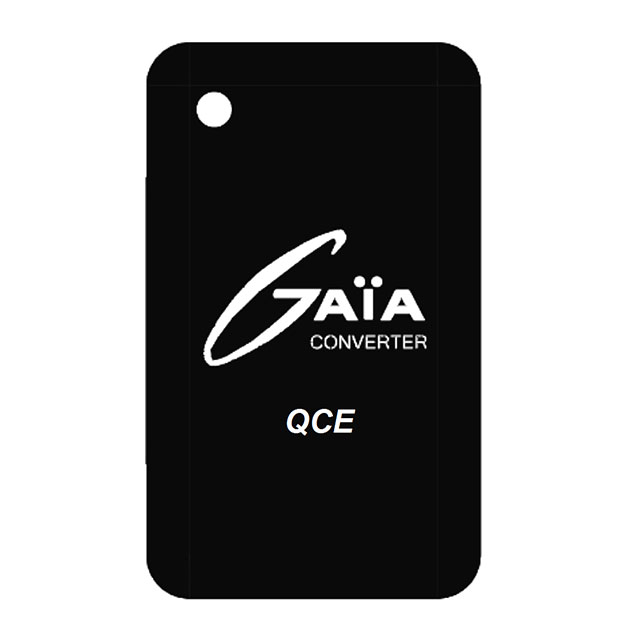

MGDSK04QE
Isolated Module DC DC Converter 1 Output 12V 330mA 36V - 140V Input
Documents
Technical documentation and resources
No documents available
