D0057004NM330AR
ActiveStetron

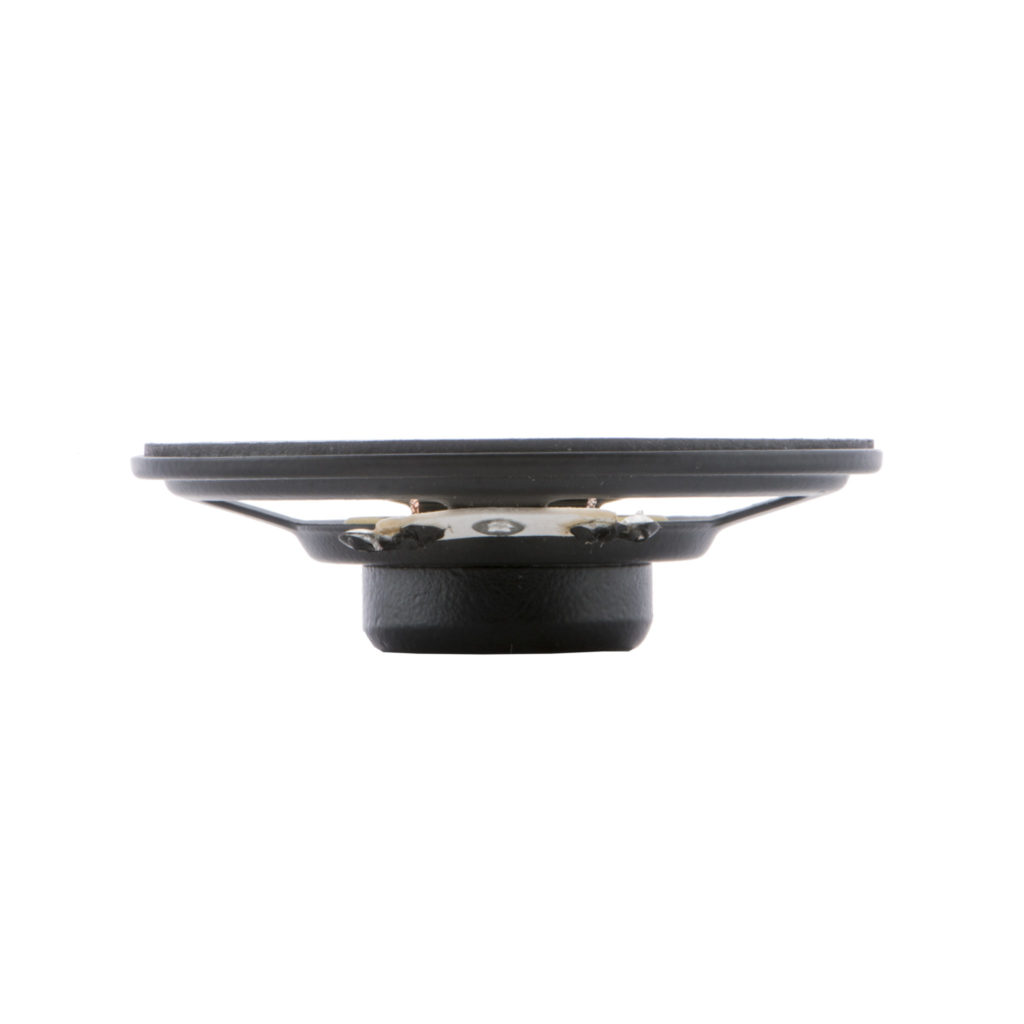

LOUDSPEAKER, 57 MM ; 4 OHMS, 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D0057004NM330AR |
|---|---|
| Distortion Rating | 10 % |
| Efficiency - dBA | 91.2 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 510 Hz |
| Frequency Range [Max] | 4 kHz |
| Frequency Range [Min] | 510 Hz |
| Height - Seated (Max) [Max] | 0.689 in |
| Height - Seated (Max) [Max] | 17.5 mm |
| Impedance | 4 Ohms |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Top |
| Power - Max [Max] | 3 W |
| Power - Rated | 2 W |
| Shape | Round |
| Size / Dimension [diameter] | 2.244 in |
| Size / Dimension [diameter] | 57 mm |
| Technology | Magnetic |
| Termination | Wire Leads with Connector |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.51 | |
| 10 | $ 5.43 | |||
| 50 | $ 5.10 | |||
Description
General part information
D0057004NM330AR
4 Ohms General Purpose Speaker 2 W 510 Hz ~ 4 kHz Top Round
