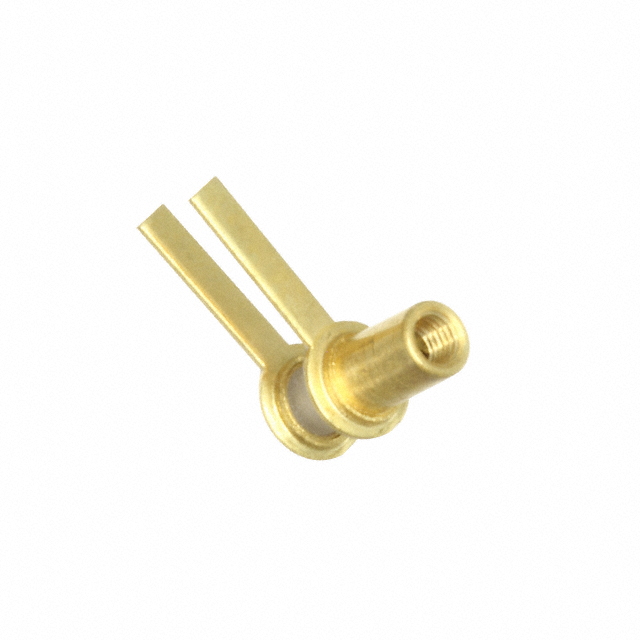

GNC1R250
ObsoleteSprague-Goodman
CAP TRIMMER 0.3-1.2PF 500V TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GNC1R250
ObsoleteSprague-Goodman
CAP TRIMMER 0.3-1.2PF 500V TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GNC1R250 |
|---|---|
| Adjustment Type | Side |
| Capacitance Range [Max] | 1.2 pF |
| Capacitance Range [Min] | 0.3 pF |
| Dielectric Material | Sapphire |
| Features | General Purpose |
| Height - Seated (Max) [Max] | 5.8 mm |
| Height - Seated (Max) [Max] | 0.23 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Q @ Freq | 250 MHz, 4000 |
| Size / Dimension [diameter] | 0.075 in |
| Size / Dimension [diameter] | 1.9 mm |
| Voltage - Rated | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GNC1R250
0.3 ~ 1.2pF Trimmer Capacitor 500 V Side Through Hole
