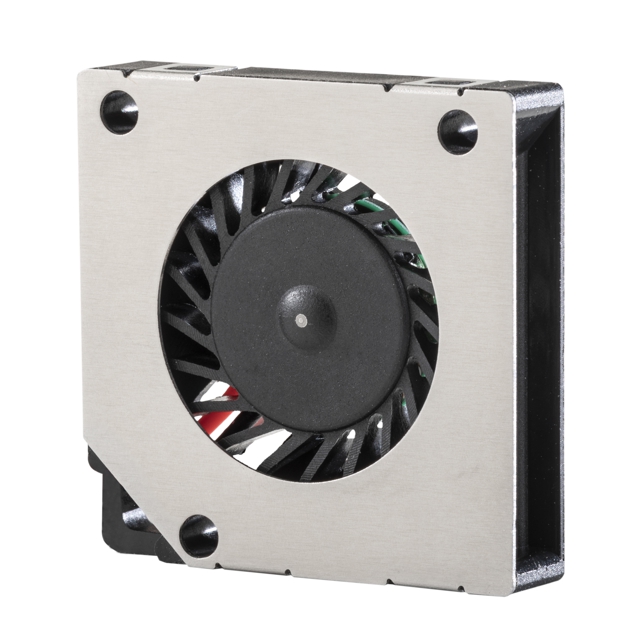

AGB204
ActivePelonis Technologies
FAN MICR BLOWER 20X4MM 5VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AGB204 |
|---|---|
| Air Flow | 0.011 mł/min |
| Air Flow | 0.38 CFM |
| Approval Agency | CE |
| Bearing Type | Axial Groove |
| Fan Type | Micro Blower |
| Features | Auto Restart, Locked Rotor Protection, Polarity Protection |
| Ingress Protection | IP58 - Dust Protected, Waterproof |
| Noise | 19.6 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| RPM | 11500 RPM |
| Size / Dimension [x] | 20 mm |
| Size / Dimension [z] | 20 mm |
| Static Pressure | 58.5 Pa |
| Static Pressure | 0.235 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 5 V |
| Weight | 2.27 g |
| Weight | 0.005 lb |
| Width [x] | 4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.96 | |
| 10 | $ 16.62 | |||
| 25 | $ 15.83 | |||
| 50 | $ 14.84 | |||
| 100 | $ 13.57 | |||
Description
General part information
AGB204
Fan Micro Blower 5VDC Square - 20mm L x 20mm H Axial Groove 0.380 CFM (0.011mł/min) 2 Wire Leads
