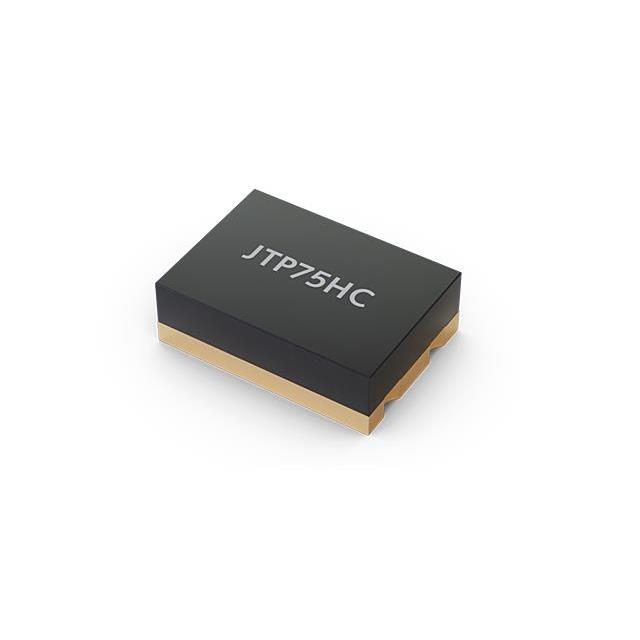

O 20,0-JTP75HCV-F-K-3,3-1616-08X0-LF
ActiveJauch Quartz
XTAL OSC VCTCXO 20MHZ HCMOS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
O 20,0-JTP75HCV-F-K-3,3-1616-08X0-LF
ActiveJauch Quartz
XTAL OSC VCTCXO 20MHZ HCMOS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | O 20,0-JTP75HCV-F-K-3,3-1616-08X0-LF |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 10 mA |
| Frequency | 20 MHz |
| Frequency Stability | 280 ppb |
| Function | Amplitude Control |
| Height - Seated (Max) [Max] [z] | 0.094 " |
| Height - Seated (Max) [Max] [z] | 2.4 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | VCTCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 23.90 | |
| 10 | $ 20.66 | |||
| 50 | $ 18.67 | |||
| Digi-Reel® | 1 | $ 23.90 | ||
| 10 | $ 20.66 | |||
| 50 | $ 18.67 | |||
| Tape & Reel (TR) | 150 | $ 17.43 | ||
| 300 | $ 16.88 | |||
Description
General part information
O 20,0-JTP75HCV-F-K-3,3-1616-08X0-LF
20 MHz VCTCXO HCMOS Oscillator 3.3V Amplitude Control 8-SMD, No Lead
