MGV252010R47M-10
ActiveLaird Technologies - Thermal Materials
FIXED IND 470NH 3.9A 32MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGV252010R47M-10
ActiveLaird Technologies - Thermal Materials
FIXED IND 470NH 3.9A 32MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGV252010R47M-10 |
|---|---|
| Current - Saturation (Isat) | 4.7 A |
| Current Rating (Amps) | 3.9 A |
| DC Resistance (DCR) [Max] | 32 mOhm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 470 nH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1008 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| Digi-Reel® | 1 | $ 0.33 | ||
| Tape & Reel (TR) | 15000 | $ 0.12 | ||
Description
General part information
MGV252010R47M-10

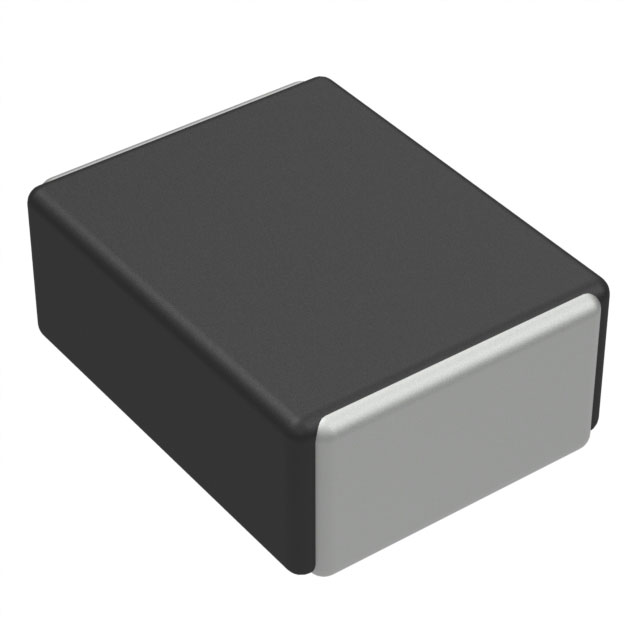

470 nH Shielded Molded Inductor 3.9 A 32mOhm Max 1008 (2520 Metric)
