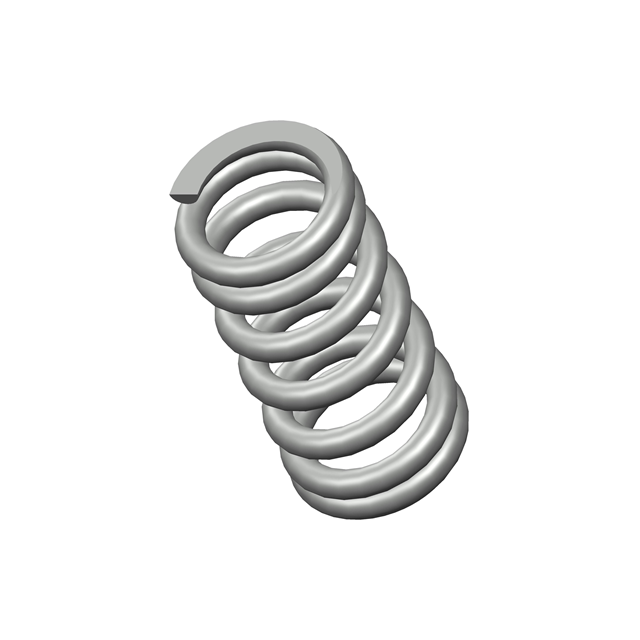

70703CS
ActiveCentury Spring Corp
COMP O= .240,L= .50,W= .038
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
70703CS
ActiveCentury Spring Corp
COMP O= .240,L= .50,W= .038
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 70703CS |
|---|---|
| Diameter - Inside [diameter] | 0.164 in |
| Diameter - Inside [diameter] | 4.17 mm |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 12.7 mm |
| Free Length | 0.5 in |
| Material | Music Wire |
| Rate | 72 lbs/in |
| Wire Diameter [diameter] | 0.97 mm |
| Wire Diameter [diameter] | 0.038 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 7.12 | |
| 15 | $ 6.05 | |||
| 30 | $ 5.34 | |||
| 50 | $ 2.14 | |||
| 100 | $ 1.21 | |||
Description
General part information
70703CS
COMP O= .240,L= .50,W= .038
