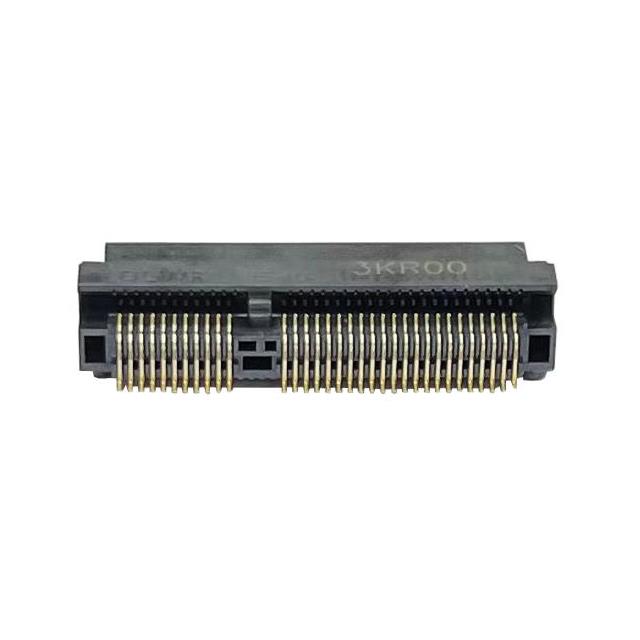

80602-4021
ActiveBellWether
CONN M.2 FMALE 67POS 0.20MM GOLD
Deep-Dive with AI
Search across all available documentation for this part.
80602-4021
ActiveBellWether
CONN M.2 FMALE 67POS 0.20MM GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 80602-4021 |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | M.2 (NGFF) Mini Card |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Gender | Female |
| Mounting Type | Surface Mount |
| Number of Positions | 67 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10 | $ 0.83 | |
| 50 | $ 0.74 | |||
| 100 | $ 0.70 | |||
Description
General part information
80602-4021
67 Position Female Connector M.2 (NGFF) Mini Card Gold Black
Documents
Technical documentation and resources
No documents available
