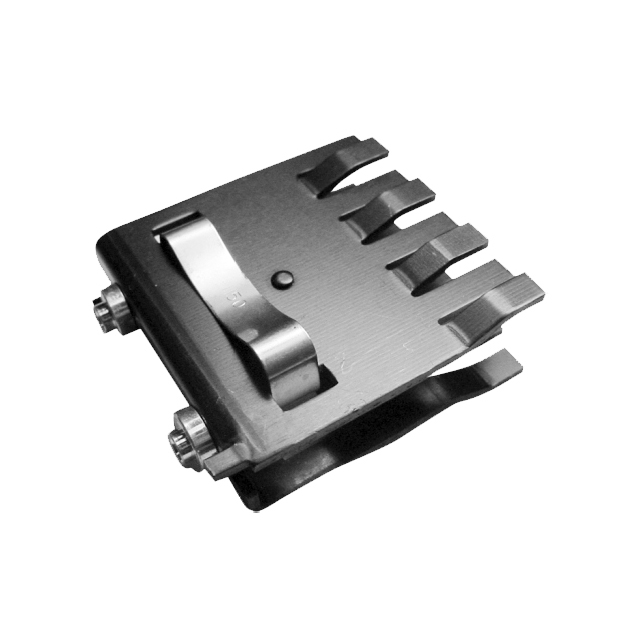

ATS-PCB1053
ObsoleteAdvanced Thermal Solutions Inc.
HEATSINK TO-220 HIGH RISE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATS-PCB1053
ObsoleteAdvanced Thermal Solutions Inc.
HEATSINK TO-220 HIGH RISE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS-PCB1053 |
|---|---|
| Attachment Method | Clip and Board Mounts |
| Fin Height [z] | 1.772 in |
| Fin Height [z] | 45 mm |
| Length | 44.7 mm |
| Length [x] | 1.76 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Forced Air Flow | 2.7 °C/W |
| Thermal Resistance @ Natural | 6.3 °C/W |
| Type | Board Level, Vertical |
| Width [y] | 17.7 mm |
| Width [y] | 0.697 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ATS-PCB1053
Heat Sink TO-220 Aluminum Board Level, Vertical
