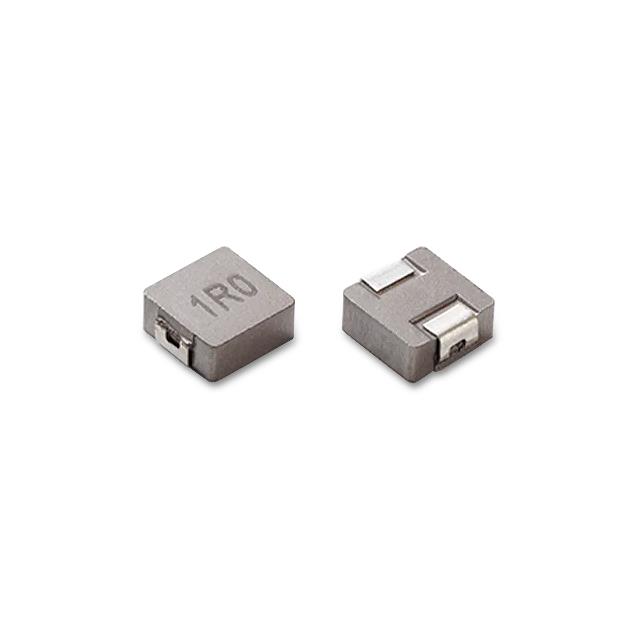

AMPI0420ED6R8MTA
ActiveArlitech Electronic Corp.
SMD POWER INDUCTORS 0420 6.8UH 2
Deep-Dive with AI
Search across all available documentation for this part.
AMPI0420ED6R8MTA
ActiveArlitech Electronic Corp.
SMD POWER INDUCTORS 0420 6.8UH 2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AMPI0420ED6R8MTA |
|---|---|
| Current - Saturation (Isat) | 3 A |
| Current Rating (Amps) | 2 A |
| DC Resistance (DCR) [Max] | 135 mOhm |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.181 " |
| Size / Dimension [x] | 4.6 mm |
| Size / Dimension [y] | 4.1 mm |
| Size / Dimension [y] | 0.161 in |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.27 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.27 | ||
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 2000 | $ 0.12 | ||
| 4000 | $ 0.11 | |||
| 6000 | $ 0.10 | |||
| 10000 | $ 0.10 | |||
| 14000 | $ 0.09 | |||
| 20000 | $ 0.09 | |||
| 50000 | $ 0.08 | |||
Description
General part information
AMPI0420ED6R8MTA
6.8 µH Unshielded Inductor 2 A 135mOhm Max Nonstandard
Documents
Technical documentation and resources
No documents available
