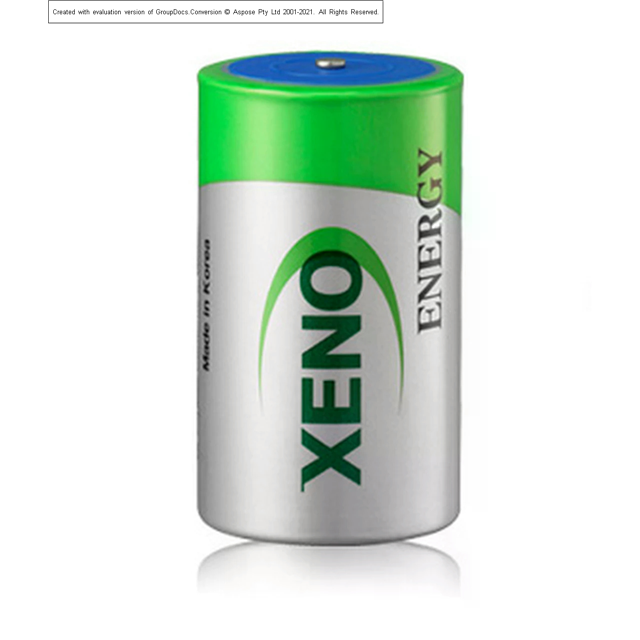

XL-205F
ActiveXeno
BATTERY LITHIUM 3.6V D
Deep-Dive with AI
Search across all available documentation for this part.
XL-205F
ActiveXeno
BATTERY LITHIUM 3.6V D
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XL-205F |
|---|---|
| Battery Cell Size | D |
| Battery Chemistry | Lithium Thionyl Chloride |
| Capacity | 19 Ah |
| Discharge Rate | 230 mA |
| Shelf Life | 120 Months |
| Shelf Life Start | Date of Manufacture |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension [diameter] | 1.32 in |
| Size / Dimension [diameter] | 33.5 mm |
| Size / Dimension [z] | 2.32 in |
| Size / Dimension [z] | 58.9 mm |
| Termination Style | Button Top (Extending) |
| Voltage - Rated | 3.6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 30 | $ 18.95 | |
| 120 | $ 17.50 | |||
Description
General part information
XL-205F
D Lithium Thionyl Chloride 3.6 V Battery Non-Rechargeable (Primary)
Documents
Technical documentation and resources
No documents available
