Technical Specifications
Parameters and characteristics for this part
| Specification | SL 6 156 42 Z |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating [Max] | 236.2 µin |
| Contact Finish Thickness - Mating [Max] | 6 µm |
| Contact Finish Thickness - Mating [Min] | 4 µm |
| Contact Finish Thickness - Mating [Min] | 157.5 µin |
| Contact Finish Thickness - Post [Max] | 6 µm |
| Contact Finish Thickness - Post [Max] | 236.2 µin |
| Contact Finish Thickness - Post [Min] | 157.5 µin |
| Contact Finish Thickness - Post [Min] | 4 µm |
| Contact Material | Copper Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Features | Sandwich |
| Insulation Color | Black |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 42 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 163 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 2.71 | |
Description
General part information

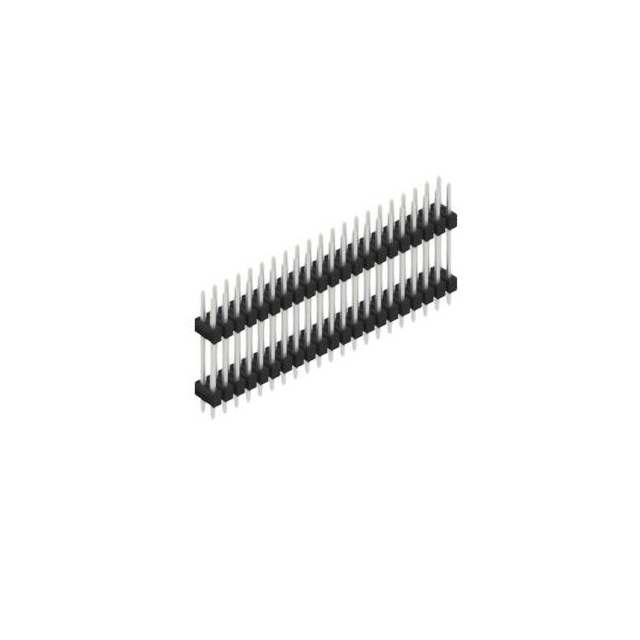

SL 6 156 42 Z
Connector Header Through Hole 42 position 0.100" (2.54mm)
