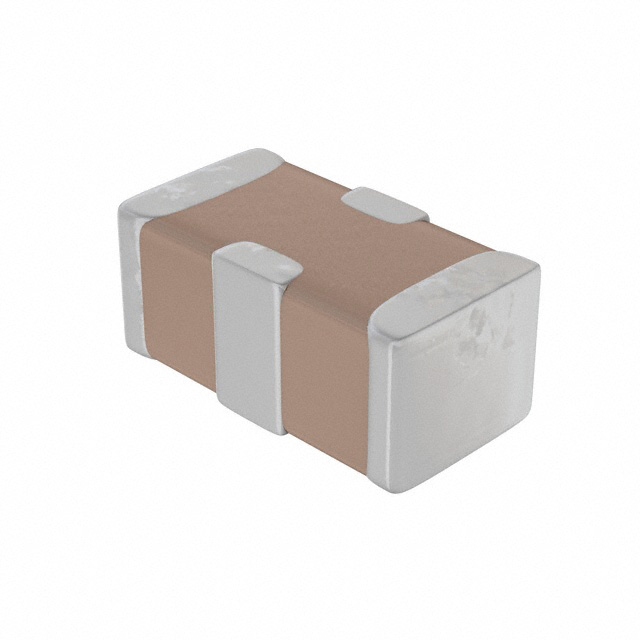

EMCF160W103M1GV001T
ActiveJOHANSON DIELECTRICS
CAP CER 10000PF 16V X7R 0402
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EMCF160W103M1GV001T
ActiveJOHANSON DIELECTRICS
CAP CER 10000PF 16V X7R 0402
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EMCF160W103M1GV001T |
|---|---|
| Applications | Bypass, Decoupling |
| Capacitance | 10000 pF |
| Features | Low ESL |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension [x] | 0.045 " |
| Size / Dimension [x] | 1.14 mm |
| Size / Dimension [y] | 0.64 mm |
| Size / Dimension [y] | 0.025 in |
| Temperature Coefficient | X7R |
| Thickness (Max) [Max] | 0.02 in |
| Thickness (Max) [Max] | 0.51 mm |
| Tolerance | 20 % |
| Voltage - Rated [custom] | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.41 | |
| 10 | $ 0.25 | |||
| 100 | $ 0.16 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.41 | ||
| 10 | $ 0.25 | |||
| 100 | $ 0.16 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 4000 | $ 0.10 | ||
| 8000 | $ 0.10 | |||
| 12000 | $ 0.10 | |||
| 20000 | $ 0.09 | |||
| 28000 | $ 0.09 | |||
| 40000 | $ 0.09 | |||
| 100000 | $ 0.09 | |||
Description
General part information
EMCF160W103M1GV001T
10000 pF ±20% 16V Ceramic Capacitor X7R 0402 (1005 Metric)
