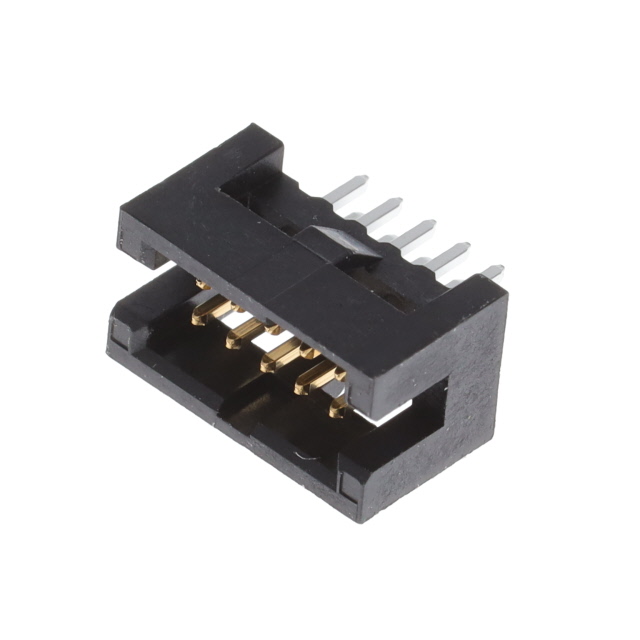

20021211-00010T4LF - 20021211-00010T4LF

20021211-00010T4LF

Active
Amphenol ICC (FCI)

CONN HEADER VERT 10POS 1.27MM

Deep-Dive with AI

Documents20021211 DrawingDatasheet+2

Technical Specifications

Parameters and characteristics for this part

Specification20021211-00010T4LF
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact Finish Thickness - Post1.27 µm
Contact Finish Thickness - Post50 µin
Contact Length - Mating3.05 mm
Contact Length - Mating0.12 in
Contact Length - Post0.091 in
Contact Length - Post2.3 mm
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)1 A
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height5.4 mm
Insulation Height [z]0.213 in
Insulation MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions10
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.05 in
Pitch - Mating1.27 mm
Row Spacing - Mating0.05 in
Row Spacing - Mating1.27 mm
ShroudingShrouded - 4 Wall
TerminationSolder
Voltage Rating125 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 1.08
10$ 0.82
100$ 0.63
500$ 0.53
1000$ 0.49
5000$ 0.47

Description

General part information

20021211-00010T4LF

Connector Header Through Hole 10 position 0.050" (1.27mm)
