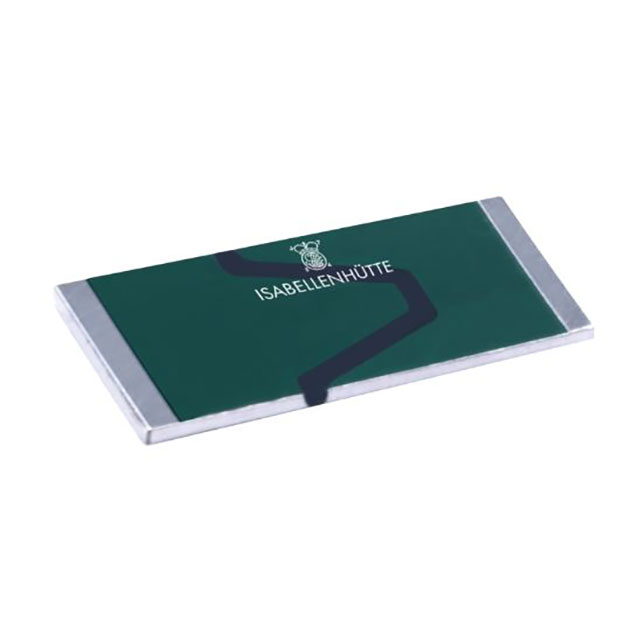

VMS-R100-1.0-U
ActiveIsabellenhuette USA
RESISTOR - ISA-PLAN SHUNT, 0.1,
Deep-Dive with AI
Search across all available documentation for this part.
VMS-R100-1.0-U
ActiveIsabellenhuette USA
RESISTOR - ISA-PLAN SHUNT, 0.1,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VMS-R100-1.0-U |
|---|---|
| Features | Automotive AEC-Q200, Current Sense, Pulse Withstanding, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | 6432 Metric |
| Package / Case | 2512 |
| Power (Watts) | 4 W |
| Ratings | AEC-Q200 |
| Resistance | 0.1 Ohms |
| Size / Dimension [x] | 0.25 " |
| Size / Dimension [x] | 6.35 mm |
| Size / Dimension [y] | 3.05 mm |
| Size / Dimension [y] | 0.12 " |
| Supplier Device Package | 2512 |
| Temperature Coefficient | 20 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.95 | |
| 10 | $ 1.75 | |||
| 25 | $ 1.44 | |||
| 50 | $ 1.25 | |||
| 100 | $ 1.09 | |||
| 250 | $ 0.92 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.75 | |||
| Digi-Reel® | 1 | $ 2.95 | ||
| 10 | $ 1.75 | |||
| 25 | $ 1.44 | |||
| 50 | $ 1.25 | |||
| 100 | $ 1.09 | |||
| 250 | $ 0.92 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.75 | |||
| Tape & Reel (TR) | 9000 | $ 0.75 | ||
Description
General part information
VMS-R100-1.0-U
100 mOhms ±1% 4W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Foil
Documents
Technical documentation and resources
