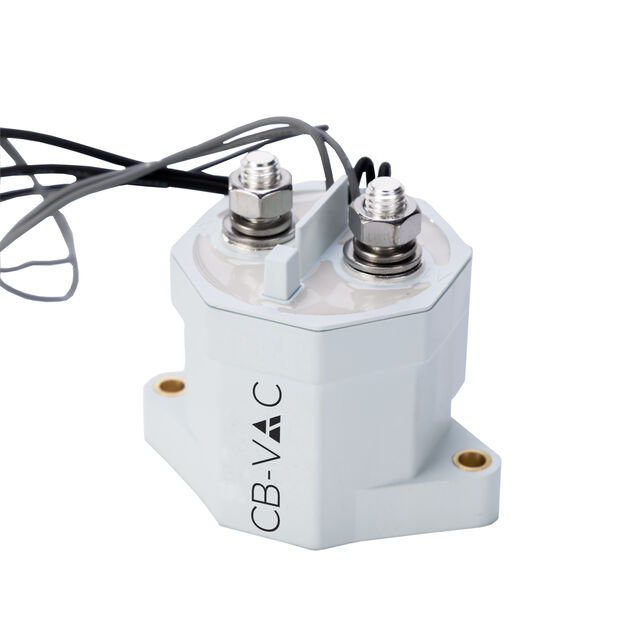

CBVC7-250T-P
ActiveComponent Basics
CBVC7 SERIES 250A DC CONTACTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CBVC7-250T-P |
|---|---|
| Coil Power | 2 W |
| Coil Voltage [Max] | 36 VDC |
| Coil Voltage [Min] | 9 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Copper Alloy |
| Contact Rating (Current) | 250 A |
| Features | Sealed - Hermetically, Economizer |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 7 VDC |
| Must Release Voltage | 5 VDC |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Switching Voltage [Max] | 1000 VDC |
| Termination Style | Wire Leads, Stud |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 63.00 | |
| 10 | $ 57.00 | |||
| 50 | $ 53.00 | |||
Description
General part information
CBVC7-250T-P
CBVC7 SERIES 250A DC CONTACTOR
