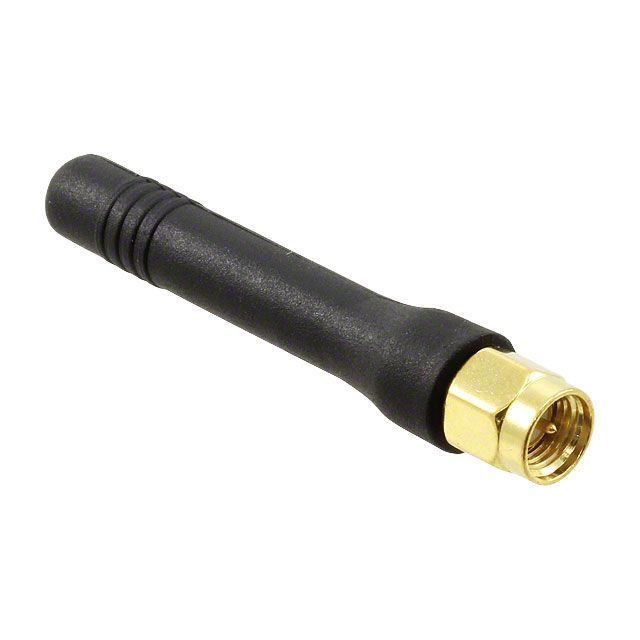

X000005
ObsoleteArduino
RF ANT WHIP STR SMA MALE CONN MT
Deep-Dive with AI
Search across all available documentation for this part.
X000005
ObsoleteArduino
RF ANT WHIP STR SMA MALE CONN MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | X000005 |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | GSM, GPRS |
| Frequency Range [Max] | 960 MHz, 1.785 GHz, 2.4 GHz |
| Frequency Range [Min] | 1.71 GHz, 824 MHz, 1.805 GHz |
| Gain | 2.14 dBi |
| Height (Max) | 62 mm |
| Height (Max) | 2.441 in |
| Mounting Type | Connector Mount |
| Number of Bands | 4 |
| RF Family/Standard | Cellular |
| VSWR | 2.4, 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
X000005
GPRS, GSM Whip, Straight RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 1.785GHz, 1.805GHz ~ 2.4GHz 2.14dBi SMA Male Connector Mount
Documents
Technical documentation and resources
No documents available
