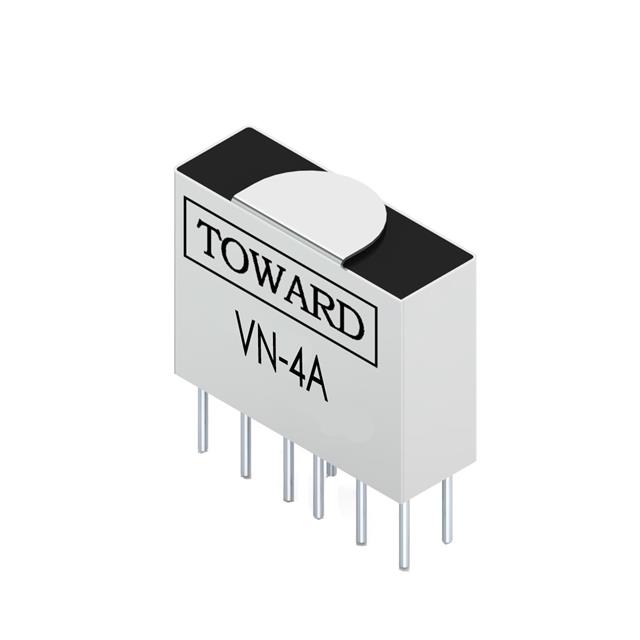

VN-4A05
ActiveBright Toward Industrial Co., Ltd.
210V/1A VERTICAL PACKAGE REED RE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VN-4A05
ActiveBright Toward Industrial Co., Ltd.
210V/1A VERTICAL PACKAGE REED RE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VN-4A05 |
|---|---|
| Coil Resistance | 200 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | 4PST-NO (4 Form A) |
| Contact Rating (Current) | 0.5 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.7 VDC |
| Operate Time | 500 µs |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 0.5 ms |
| Seal Rating | Sealed - Hermetically |
| Switching Voltage | 120 VAC, 170 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 46.97 | |
| 10 | $ 41.03 | |||
| 25 | $ 38.88 | |||
| 40 | $ 37.82 | |||
| 80 | $ 36.32 | |||
| 230 | $ 34.13 | |||
Description
General part information
VN-4A05
210V/1A VERTICAL PACKAGE REED RE
