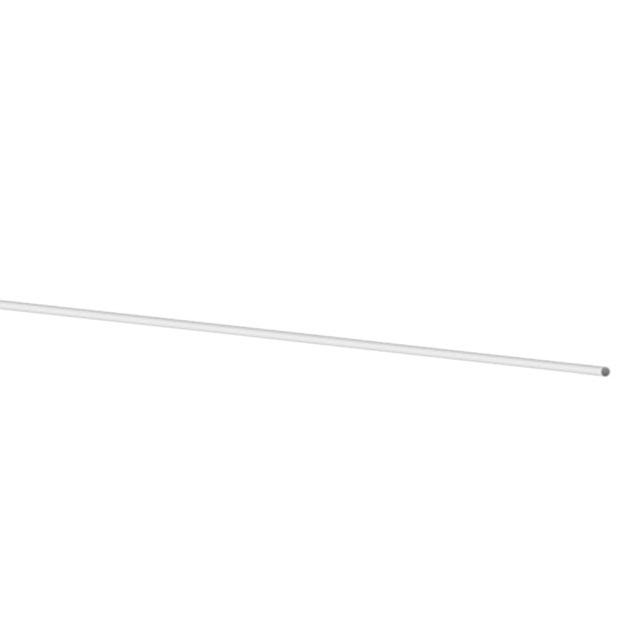

CK-20
ActiveIndustrial Fiber Optics
CBL FIBER OPTIC 500UM POF 6000M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CK-20
ActiveIndustrial Fiber Optics
CBL FIBER OPTIC 500UM POF 6000M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CK-20 |
|---|---|
| Bend Radius [radius] | 15 mm |
| Cladding Diameter [diameter] | 500 µm |
| Cladding Material | Fluorinated Polymer |
| Core Diameter [diameter] | 486 µm |
| Core Material | Polymethyl - Methacrylate Resin |
| Length | 19685 ft |
| Length | 6000 m |
| Numerical Aperture | 0.5 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -55 °C |
| Refractive Index - Core [custom] | 1.492 |
| Style | Standard |
| Tensile Strength | 1.4 kg |
| Type | POF |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CK-20
Fiber Optic Cable POF 500µm 19685' (6000.0m)
