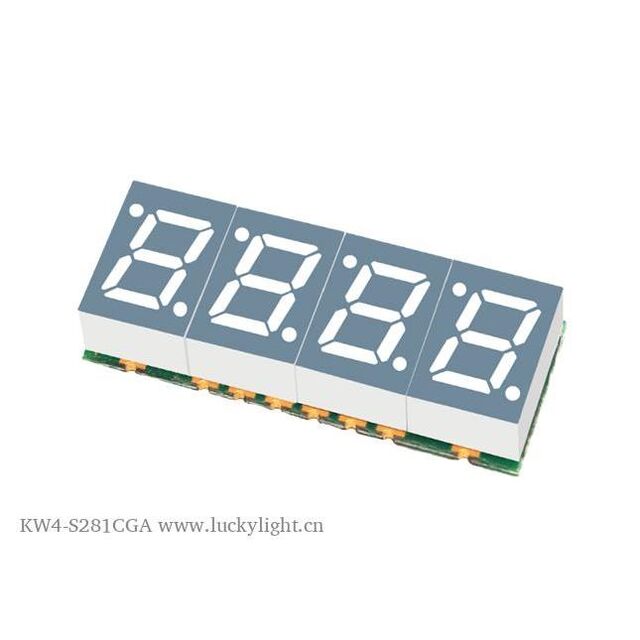

KW4-S281CGA
ActiveLuckylight
0.28INCH (7.00MM), GREEN QUADRUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KW4-S281CGA |
|---|---|
| Color | Yellow-Green |
| Common Pin | Common Cathode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 7 mm |
| Digit/Alpha Size | 0.28 in |
| Display Type | 7-Segment |
| Millicandela Rating | 8 mcd |
| Number of Characters | 4 |
| Package / Case | 12-SMD, No Lead |
| Power Dissipation (Max) [Max] | 48 mW |
| Size / Dimension [x] | 1.193 " |
| Size / Dimension [x] | 30.3 mm |
| Size / Dimension [y] | 3.75 mm |
| Size / Dimension [y] | 0.148 in |
| Size / Dimension [z] | 0.472 " |
| Size / Dimension [z] | 12 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 575 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KW4-S281CGA
Display Modules - LED Character and Numeric Yellow-Green 7-Segment 4 Character Common Cathode 2V 20mA 0.472" H x 1.193" W x 0.148" D (12.00mm x 30.30mm x 3.75mm) 12-SMD, No Lead
