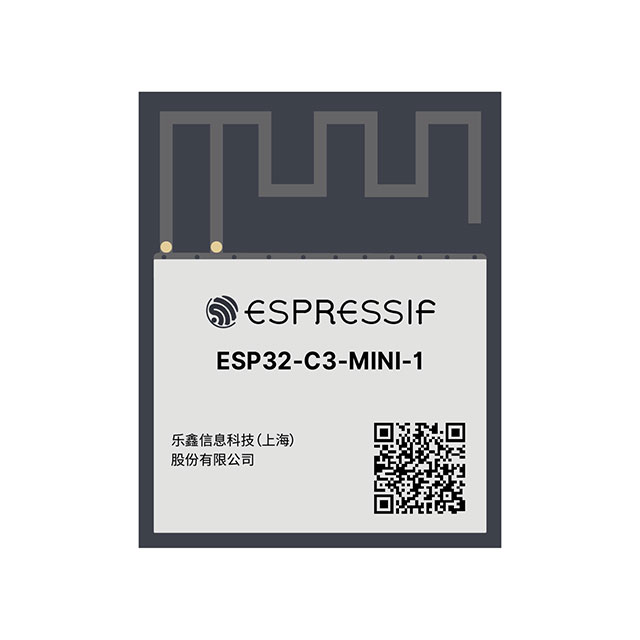

ESP32-C3-MINI-1-H4-ES
UnknownEspressif Systems
RF TXRX MOD BT WIFI PCB TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESP32-C3-MINI-1-H4-ES |
|---|---|
| Antenna Type | PCB Trace |
| Current - Receiving | 84 mA |
| Current - Transmitting | 350 mA |
| Data Rate | 2 Mbps |
| Frequency [Max] | 2.484 GHz |
| Frequency [Min] | 2.412 GHz |
| Memory Size | 400 kB, 4 MB, 384 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 20.5 dBm |
| Protocol | Bluetooth v5.0, 802.11b/g/n |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -98 dBm |
| Serial Interfaces | SPI, I2C, GPIO, I2S, UART |
| Utilized IC / Part | ESP32-C3FH4 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ESP32-C3-MINI-1-H4-ES
Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 Transceiver Module 2.412GHz ~ 2.484GHz PCB Trace Surface Mount
