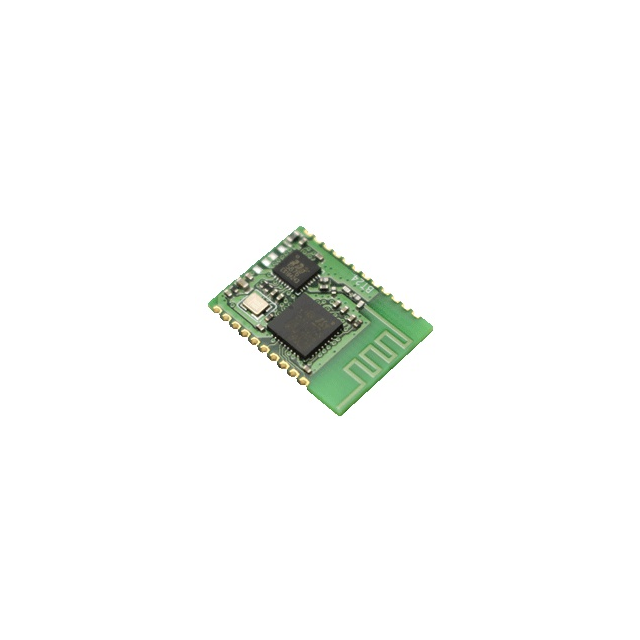

BT24
ActiveAmp'ed RF Tech
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BT24 |
|---|---|
| Antenna Type | Integrated, Chip |
| Data Rate | 400 kbps |
| Frequency [Max] | 2.4835 GHz |
| Frequency [Min] | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 22-SMD Module |
| Power - Output | 6 dBm |
| Protocol | Bluetooth v3.0, Class 2 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -90 dBm |
| Serial Interfaces | UART, SPI, I2C, GPIO, ADC, PCM |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 8.00 | |
Description
General part information
BT24
Bluetooth Bluetooth v3.0, Class 2 Transceiver Module 2.4GHz ~ 2.4835GHz Integrated, Chip Surface Mount
Documents
Technical documentation and resources
No documents available
