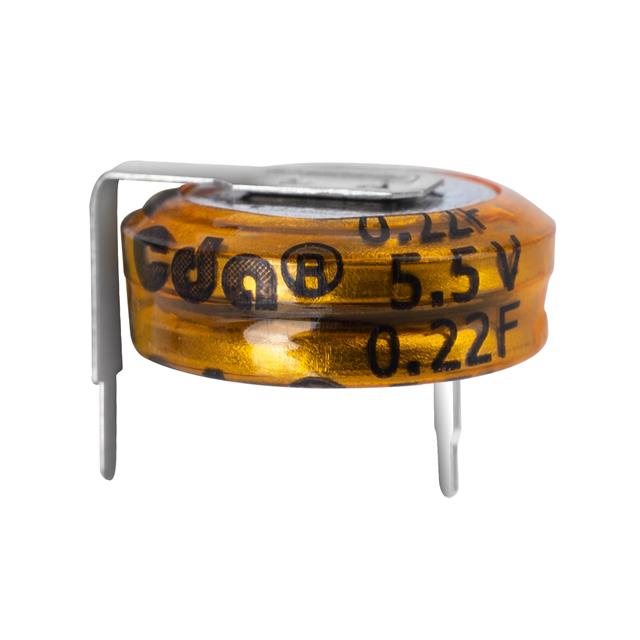

CB 5R5224 HF-ZJP
ActiveZhi Feng Wei Technology
CAP 0.22F -20% +80% 5.5V T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CB 5R5224 HF-ZJP
ActiveZhi Feng Wei Technology
CAP 0.22F -20% +80% 5.5V T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CB 5R5224 HF-ZJP |
|---|---|
| Capacitance | 220 mF |
| ESR (Equivalent Series Resistance) | 75 Ohm |
| Height - Seated (Max) [Max] | 0.217 in |
| Height - Seated (Max) [Max] | 5.5 mm |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Axial, Can - Horizontal |
| Size / Dimension [diameter] | 0.453 " |
| Size / Dimension [diameter] | 11.5 mm |
| Termination | PC Pins |
| Tolerance [Max] | 80 % |
| Tolerance [Min] | -20 % |
| Voltage - Rated | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.94 | |
| 10 | $ 1.24 | |||
| 50 | $ 0.95 | |||
| 100 | $ 0.87 | |||
| 500 | $ 0.72 | |||
| 1000 | $ 0.67 | |||
| 2500 | $ 0.62 | |||
| 5000 | $ 0.59 | |||
Description
General part information
CB 5R5224 HF-ZJP
220 mF (EDLC) Supercapacitor 5.5 V Axial, Can - Horizontal 75Ohm @ 1kHz 1000 Hrs @ 70°C
