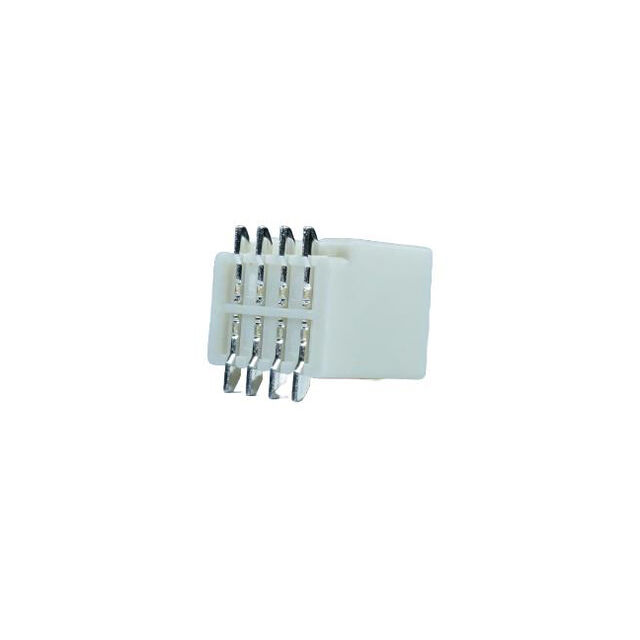

SJW2K-08WVA-ET
ActiveJAM
2 MM W TO B CONNECTOR 8P HOUSING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SJW2K-08WVA-ET
ActiveJAM
2 MM W TO B CONNECTOR 8P HOUSING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SJW2K-08WVA-ET |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Locking Ramp |
| Insulation Color | White |
| Insulation Height [z] | 0.346 in |
| Insulation Height [z] | 8.8 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| 10 | $ 0.62 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.43 | |||
| Digi-Reel® | 1 | $ 0.81 | ||
| 10 | $ 0.62 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.43 | |||
| Tape & Reel (TR) | 500 | $ 0.40 | ||
| 1000 | $ 0.37 | |||
| 1500 | $ 0.35 | |||
| 2500 | $ 0.34 | |||
| 3500 | $ 0.32 | |||
| 5000 | $ 0.31 | |||
| 12500 | $ 0.29 | |||
| 25000 | $ 0.27 | |||
Description
General part information
SJW2K-08WVA-ET
Connector Header Surface Mount 8 position 0.079" (2.00mm)
