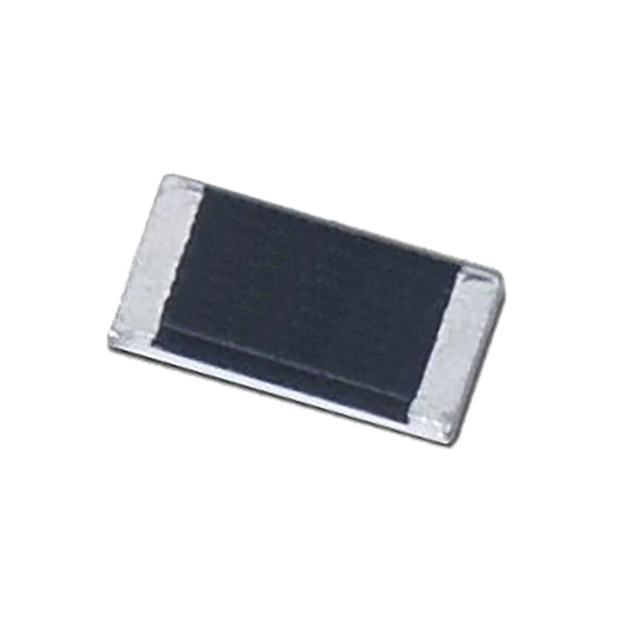

NCST50FR040FTRF
ActiveNIC Components Corp
RES SMT201040M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NCST50FR040FTRF
ActiveNIC Components Corp
RES SMT201040M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NCST50FR040FTRF |
|---|---|
| Composition | Thick Film |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Power (Watts) | 0.75 W |
| Power (Watts) | 0.75 W |
| Size / Dimension [x] | 3.1 mm |
| Size / Dimension [x] | 0.122 " |
| Size / Dimension [y] | 0.102 " |
| Size / Dimension [y] | 2.6 mm |
| Supplier Device Package | 2010 |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NCST50FR040FTRF
40 mOhms ±1% 0.75W, 3/4W Chip Resistor Thick Film
