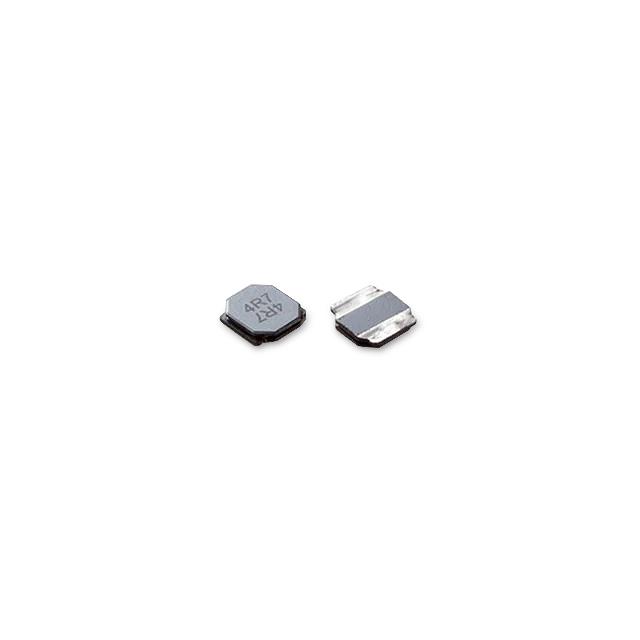

ATNR4010100MTA
ActiveArlitech Electronic Corp.
SMD POWER INDUCTORS 4010 10UH 20
Deep-Dive with AI
Search across all available documentation for this part.
ATNR4010100MTA
ActiveArlitech Electronic Corp.
SMD POWER INDUCTORS 4010 10UH 20
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATNR4010100MTA |
|---|---|
| Current - Saturation (Isat) | 900 mA |
| Current Rating (Amps) | 900 mA |
| DC Resistance (DCR) [Max] | 550 mOhm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1616 (4040 Metric) |
| Shielding | Shielded |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [y] | 0.157 in |
| Size / Dimension [y] | 4 mm |
| Supplier Device Package | 1616 |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.27 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.27 | ||
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.14 | |||
| Tape & Reel (TR) | 1000 | $ 0.13 | ||
| 2000 | $ 0.12 | |||
| 3000 | $ 0.11 | |||
| 5000 | $ 0.10 | |||
| 7000 | $ 0.10 | |||
| 10000 | $ 0.10 | |||
| 25000 | $ 0.09 | |||
| 50000 | $ 0.08 | |||
Description
General part information
ATNR4010100MTA
10 µH Shielded Wirewound Inductor 0.9 A 550mOhm Max 1616 (4040 Metric)
Documents
Technical documentation and resources
No documents available
