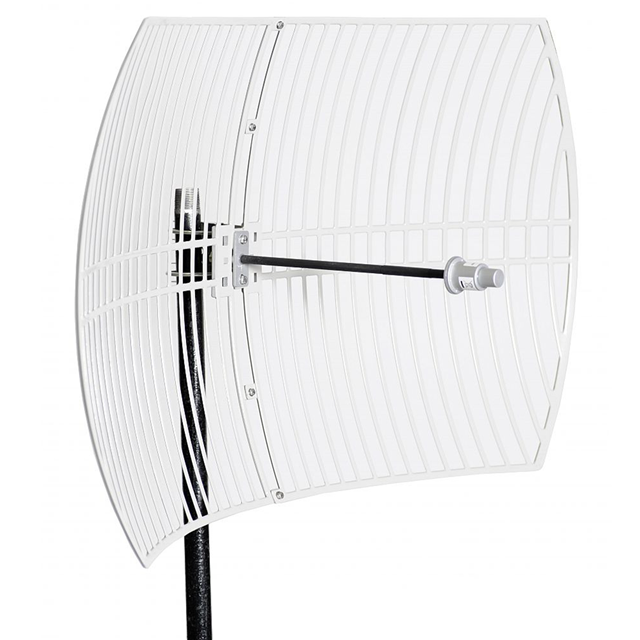

WAG58302
ActiveTurmode
GRID PARABOLIC WIFI ANTENNA FOR
Deep-Dive with AI
Search across all available documentation for this part.
WAG58302
ActiveTurmode
GRID PARABOLIC WIFI ANTENNA FOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WAG58302 |
|---|---|
| Antenna Type | Parabolic Grid |
| Frequency (Center/Band) | 5.7875 GHz |
| Frequency Group | SHF |
| Frequency Range [Max] | 5.85 GHz |
| Frequency Range [Min] | 5.725 GHz |
| Gain | 30 dBi |
| Height (Max) [Max] | 400.05 mm |
| Height (Max) [Max] | 15.75 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Termination | N Type Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 119.98 | |
| 5 | $ 113.99 | |||
| 10 | $ 107.99 | |||
| 20 | $ 101.99 | |||
| 50 | $ 95.99 | |||
Description
General part information
WAG58302
RF ANTENNA Parabolic Grid N Type Female Bracket Mount
Documents
Technical documentation and resources
No documents available
