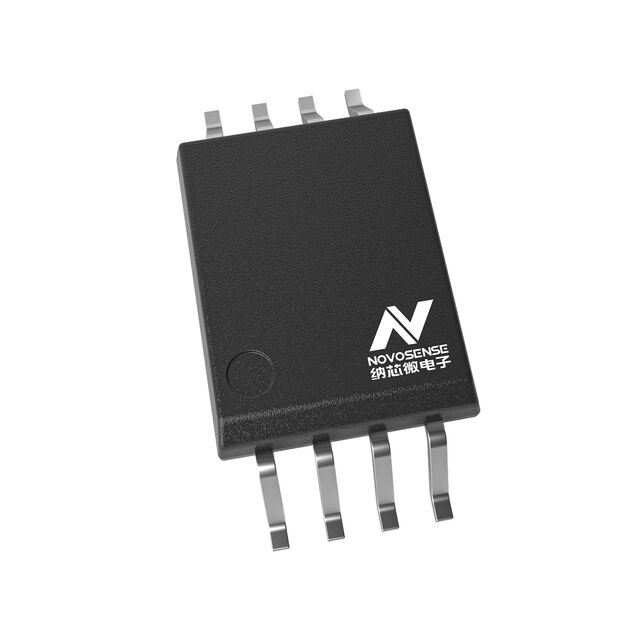

NSI6801MC-DSWVR
ActiveNOVOSENSE
1-CHANNEL ISO GATE DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NSI6801MC-DSWVR
ActiveNOVOSENSE
1-CHANNEL ISO GATE DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NSI6801MC-DSWVR |
|---|---|
| Approval Agency | UL, CSA, VDE, CQC |
| Common Mode Transient Immunity (Min) [Min] | 150 kV/µs |
| Current - Output High, Low [custom] | 5 A |
| Current - Output High, Low [custom] | 5 A |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SOIC |
| Package / Case [custom] | 0.295 in |
| Package / Case [custom] | 7.5 mm |
| Propagation Delay tpLH / tpHL (Max) [custom] | 100 ns |
| Propagation Delay tpLH / tpHL (Max) [custom] | 100 ns |
| Pulse Width Distortion (Max) [Max] | 30 ns |
| Rise / Fall Time (Typ) [custom] | 6 ns |
| Rise / Fall Time (Typ) [custom] | 6 ns |
| Supplier Device Package | 8-SO |
| Technology | Capacitive Coupling |
| Voltage - Isolation | 5700 Vrms |
| Voltage - Output Supply [Max] | 32 V |
| Voltage - Output Supply [Min] | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.90 | |
| 10 | $ 1.88 | |||
| 25 | $ 1.61 | |||
| 100 | $ 1.31 | |||
| 250 | $ 1.17 | |||
| 500 | $ 1.08 | |||
| Digi-Reel® | 1 | $ 2.90 | ||
| 10 | $ 1.88 | |||
| 25 | $ 1.61 | |||
| 100 | $ 1.31 | |||
| 250 | $ 1.17 | |||
| 500 | $ 1.08 | |||
| Tape & Reel (TR) | 1000 | $ 0.92 | ||
| 2000 | $ 0.85 | |||
| 3000 | $ 0.84 | |||
Description
General part information
NSI6801MC-DSWVR
Gate Driver Capacitive Coupling 5700Vrms 1 Channel 8-SO
