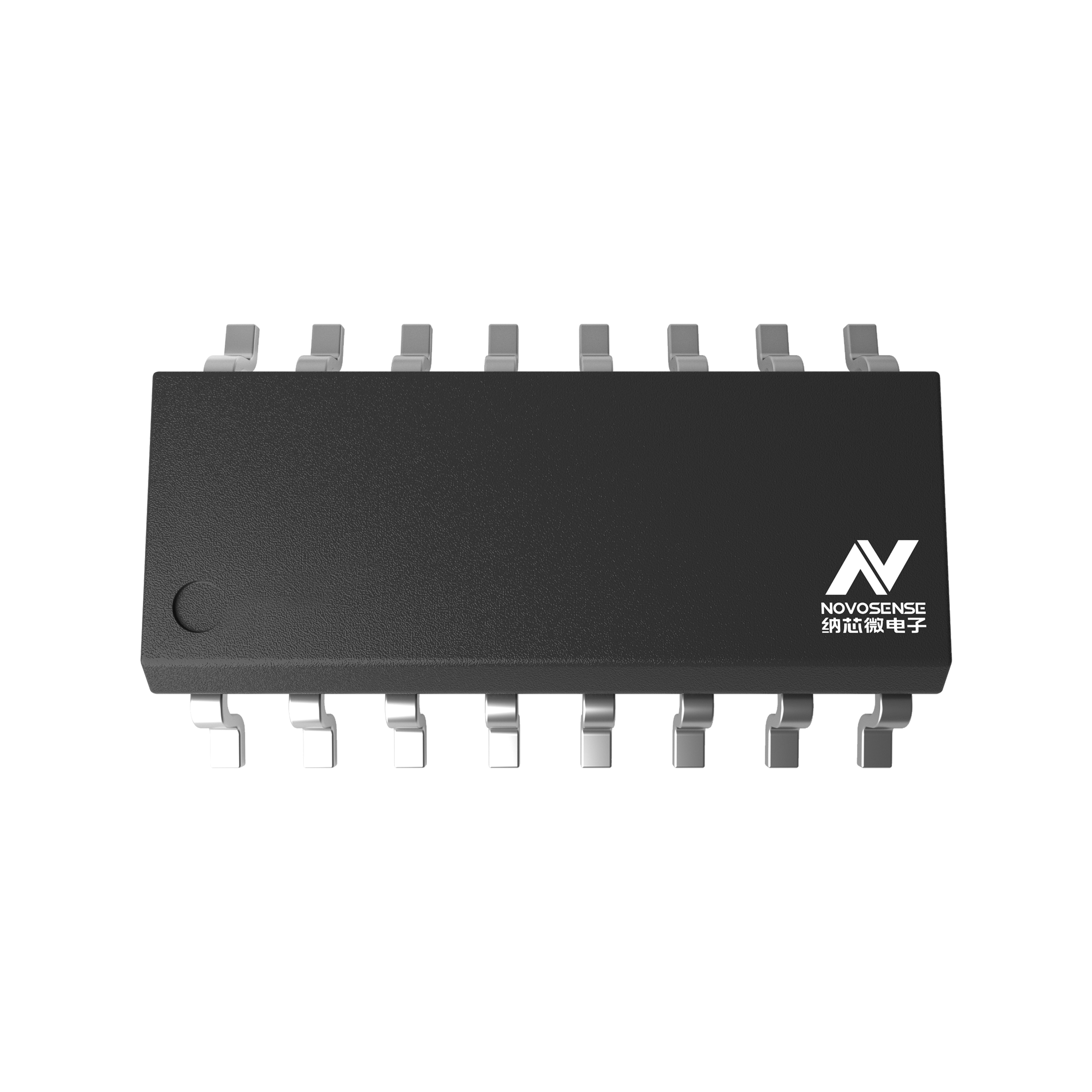

NSI6602VB-Q1SPNR
ActiveNOVOSENSE
2-CHANNEL ISO GATE DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NSI6602VB-Q1SPNR
ActiveNOVOSENSE
2-CHANNEL ISO GATE DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NSI6602VB-Q1SPNR |
|---|---|
| Approval Agency | UL, CSA, VDE, CQC |
| Common Mode Transient Immunity (Min) [Min] | 100 V/ns |
| Current - Output High, Low | 8 A, 6 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Propagation Delay tpLH / tpHL (Max) | 35 ns |
| Pulse Width Distortion (Max) [Max] | 8 ns |
| Rise / Fall Time (Typ) [custom] | 15 ns |
| Rise / Fall Time (Typ) [custom] | 15 ns |
| Supplier Device Package | 16-SOIC |
| Technology | Capacitive Coupling |
| Voltage - Isolation | 3000 VAC |
| Voltage - Output Supply [Max] | 25 V |
| Voltage - Output Supply [Min] | 8.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.10 | |
| 10 | $ 2.78 | |||
| 25 | $ 2.63 | |||
| 100 | $ 2.28 | |||
| 250 | $ 2.16 | |||
| 500 | $ 1.94 | |||
| 1000 | $ 1.64 | |||
| Digi-Reel® | 1 | $ 3.10 | ||
| 10 | $ 2.78 | |||
| 25 | $ 2.63 | |||
| 100 | $ 2.28 | |||
| 250 | $ 2.16 | |||
| 500 | $ 1.94 | |||
| 1000 | $ 1.64 | |||
Description
General part information
NSI6602VB-Q1SPNR
Gate Driver Capacitive Coupling 3000Vrms 2 Channel 16-SOIC
Documents
Technical documentation and resources
