21-655-0200-0513
ActiveJones Tech

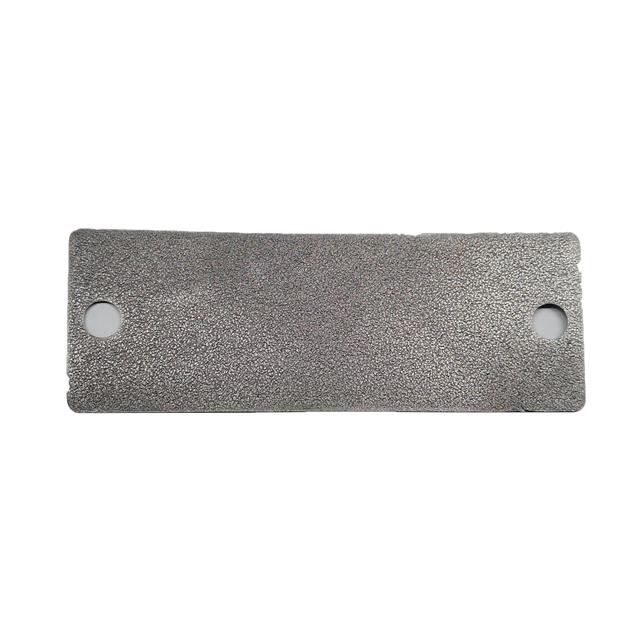

THERM PAD 92X33MM GRAY
Deep-Dive with AI
Search across all available documentation for this part.
21-655-0200-0513
ActiveJones Tech
THERM PAD 92X33MM GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 21-655-0200-0513 |
|---|---|
| Color | Gray |
| Material | Graphite |
| Outline [x] | 92 mm |
| Outline [y] | 33 mm |
| Shape | Rectangle |
| Thermal Conductivity | 400 W/m-K |
| Thermal Resistivity | 0.032 °C/W |
| Thickness | 0.2 mm |
| Thickness | 0.0079 in |
| Type | Graphite-Pad, Sheet |
| Usage | IGBT - Heat Transfer Low Thermal Resistance |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Sheet | 1 | $ 5.00 | |
| 10 | $ 3.16 | |||
Description
General part information
21-655-0200-0513
Thermal Pad Gray 92.00mm x 33.00mm Rectangle
Documents
Technical documentation and resources
No documents available
