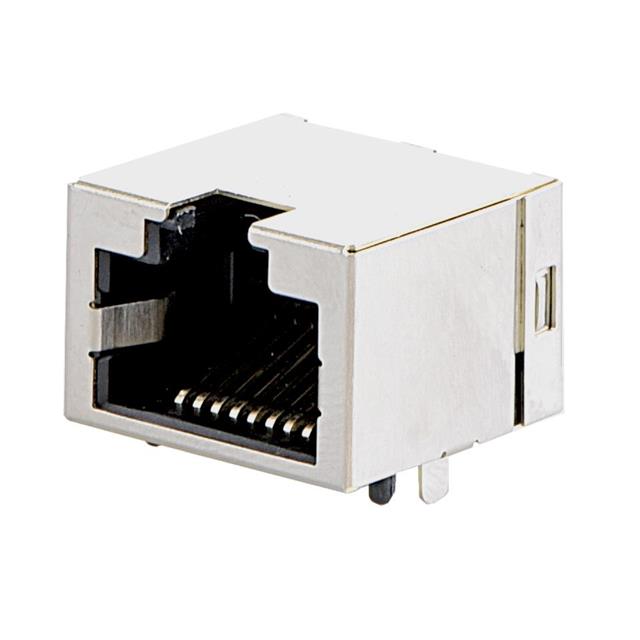

KRM-S-01-8-8-0-6B4
ActiveKinnexA
1 SHIELDED GOLD PHOSPHOR BRONZE WITHOUT LED -40℃~+85℃ ETHERNET CONNECTORS / MODULAR CONNECTORS (RJ45 RJ11) ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KRM-S-01-8-8-0-6B4
ActiveKinnexA
1 SHIELDED GOLD PHOSPHOR BRONZE WITHOUT LED -40℃~+85℃ ETHERNET CONNECTORS / MODULAR CONNECTORS (RJ45 RJ11) ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KRM-S-01-8-8-0-6B4 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.152 Ám |
| Contact Finish Thickness | 6 Áin |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole, Panel Mount |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Shielding | Shielded |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
KRM-S-01-8-8-0-6B4
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded
