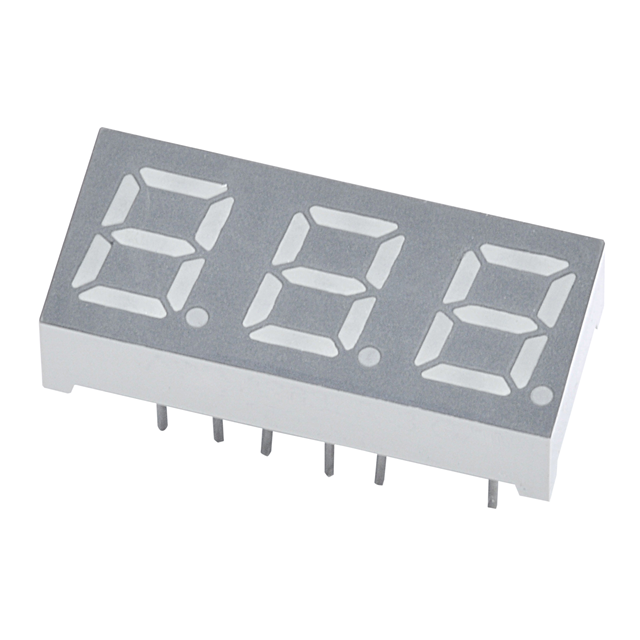

CDTA40G1W
ActiveChromeLED
DISPLAY 7SEG 0.40" TRI GREEN 24D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CDTA40G1W
ActiveChromeLED
DISPLAY 7SEG 0.40" TRI GREEN 24D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDTA40G1W |
|---|---|
| Color | Green |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 10.16 mm |
| Digit/Alpha Size [custom] | 0.4 in |
| Display Type | 7-Segment |
| Millicandela Rating | 8 mcd |
| Number of Characters | 3 |
| Package / Case | 24-DIP |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 0.63 " |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [y] | 30.1 mm |
| Size / Dimension [y] | 1.185 " |
| Size / Dimension [z] | 0.276 in |
| Size / Dimension [z] | 7 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 568 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.50 | |
Description
General part information
CDTA40G1W
Display Modules - LED Character and Numeric Green 7-Segment 3 Character Common Anode 2V 10mA 0.630" H x 1.185" W x 0.276" D (16.00mm x 30.10mm x 7.00mm) 24-DIP
