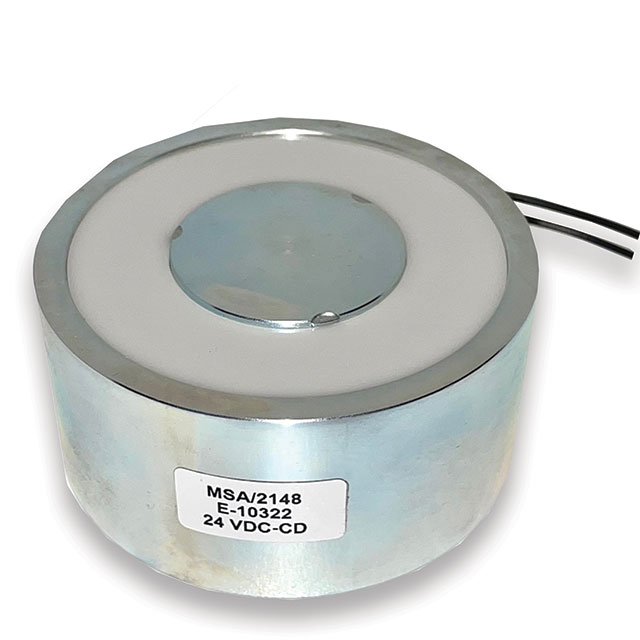

E-10322
ActiveMagnet-Schultz of America
SOLENOID 80 MM, 24VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E-10322
ActiveMagnet-Schultz of America
SOLENOID 80 MM, 24VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | E-10322 |
|---|---|
| DC Resistance (DCR) | 46.5 Ohm |
| Duty Cycle | Continuous |
| Power (Watts) | 12.4 W |
| Size / Dimension [diameter] | 3.15 in |
| Size / Dimension [diameter] | 80 mm |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 109.44 | |
| 10 | $ 99.96 | |||
| 50 | $ 91.20 | |||
Description
General part information
E-10322
Continuous Duty Solenoid Type Stroke 24VDC
