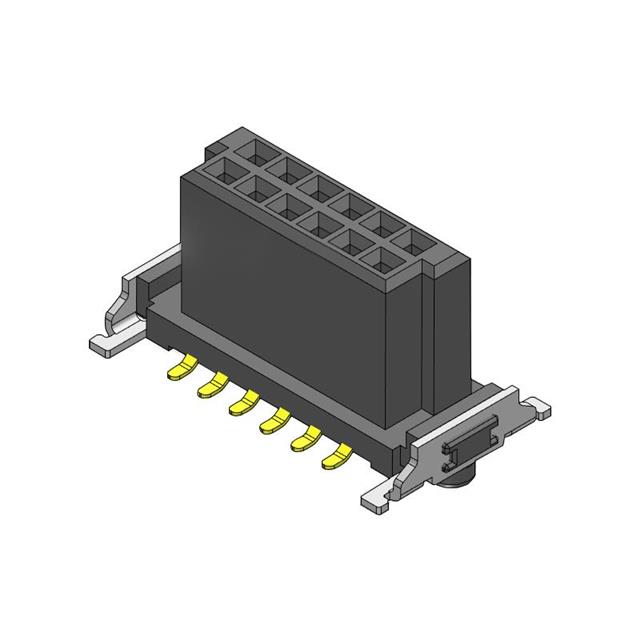

CBEC225-0679B001C1AF

Active

Greenconn

PITCH 1.27MM FEMALE CONNETOR SMC

Search across all available documentation for this part.

Active

Greenconn

PITCH 1.27MM FEMALE CONNETOR SMC

Technical Specifications

Parameters and characteristics for this part

Specification	CBEC225-0679B001C1AF

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	1.7 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Black
Insulation Height	0.246 in
Insulation Height	6.25 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
