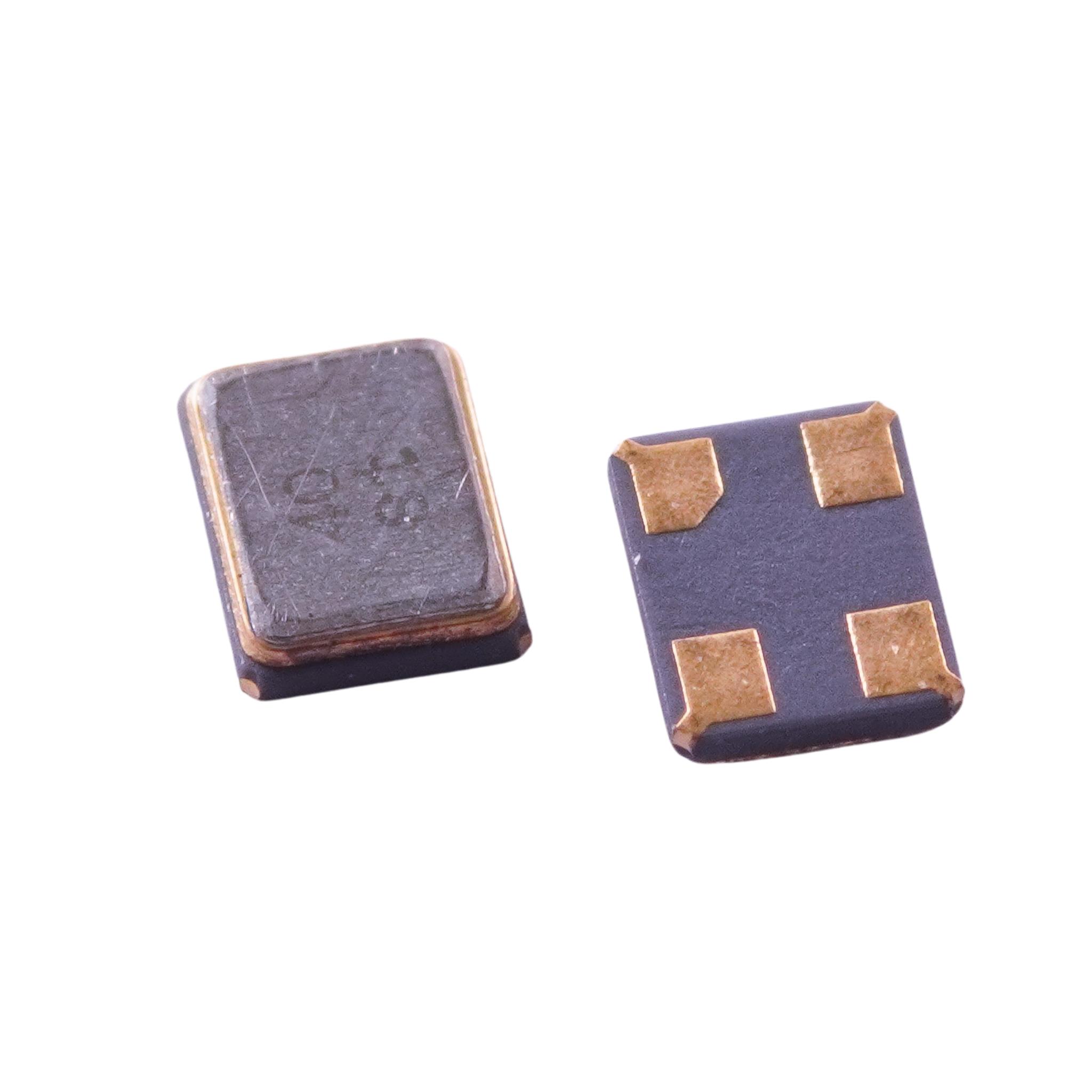

TZ3211A
ActiveTST
26.041666/20/9.5/2.5X2.0
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TZ3211A
ActiveTST
26.041666/20/9.5/2.5X2.0
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TZ3211A |
|---|---|
| ESR (Equivalent Series Resistance) | 25 Ohms |
| Frequency | 26.041666 MHz |
| Frequency Stability | 20 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] [z] | 0.6 mm |
| Height - Seated (Max) [Max] [z] | 0.024 in |
| Load Capacitance | 9.5 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.64 | |
| 10 | $ 1.03 | |||
| 100 | $ 0.77 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.58 | |||
| Digi-Reel® | 1 | $ 1.64 | ||
| 10 | $ 1.03 | |||
| 100 | $ 0.77 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.58 | |||
| Tape & Reel (TR) | 3000 | $ 0.55 | ||
| 6000 | $ 0.54 | |||
| 15000 | $ 0.53 | |||
Description
General part information
TZ3211A
26.041666 MHz ±20ppm Crystal 9.5pF 25 Ohms 4-SMD, No Lead
Documents
Technical documentation and resources
