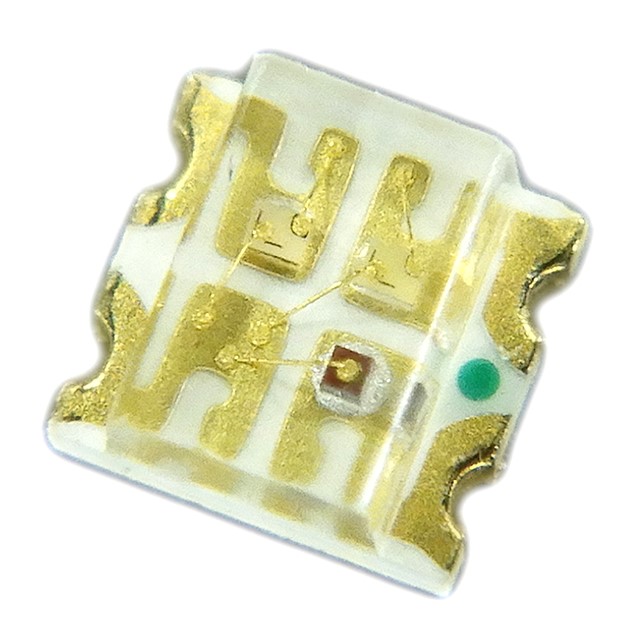

QBLP600-RYG
ActiveQT Brightek (QTB)
0606 LED RYG, 620NM RED, 590NM Y
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBLP600-RYG
ActiveQT Brightek (QTB)
0606 LED RYG, 620NM RED, 590NM Y
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBLP600-RYG |
|---|---|
| Color | Red, Yellow, Green |
| Configuration | Common Anode |
| Current - Test | 20 mA, 20 mA, 20 mA |
| Height (Max) [Max] | 0.9 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.5 mm |
| Lens Size [y] | 1.1 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 150 mcd, 450 mcd, 160 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0606, 1616 Metric |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 1.5 mm |
| Supplier Device Package | 0606 |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 2 V, 2 V, 3.2 V |
| Wavelength - Dominant | 520 nm, 622 nm, 590 nm |
| Wavelength - Peak [custom] | 630 nm |
| Wavelength - Peak [custom] | 590 nm |
| Wavelength - Peak [custom] | 518 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.69 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.69 | ||
| 10 | $ 0.45 | |||
| 100 | $ 0.30 | |||
| Tape & Reel (TR) | 1000 | $ 0.23 | ||
| 2000 | $ 0.21 | |||
| 5000 | $ 0.20 | |||
| 10000 | $ 0.19 | |||
| 25000 | $ 0.19 | |||
| 50000 | $ 0.18 | |||
Description
General part information
QBLP600-RYG
Green, Red, Yellow 520nm Green, 622nm Red, 590nm Yellow LED Indication - Discrete 3.2V Green, 2V Red, 2V Yellow 0606 (1616 Metric)
