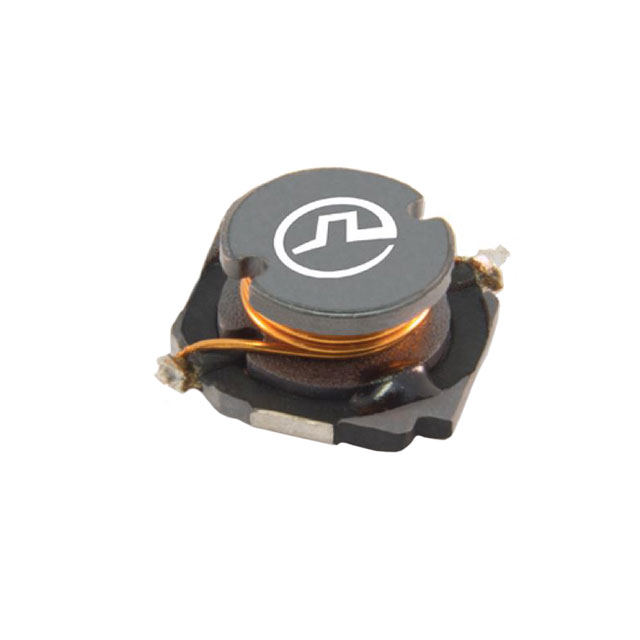

PA4307.102NLT
ActivePulse Electronics
FIXED IND 1UH 7.5A 30 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
PA4307.102NLT
ActivePulse Electronics
FIXED IND 1UH 7.5A 30 MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4307.102NLT |
|---|---|
| Current Rating (Amps) | 7.5 A |
| DC Resistance (DCR) [Max] | 30 mOhm |
| Height - Seated (Max) [Max] [z] | 3.5 mm |
| Height - Seated (Max) [Max] [z] | 0.138 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [x] | 0.287 in |
| Size / Dimension [y] | 7.3 mm |
| Size / Dimension [y] | 0.287 in |
| Tolerance | 30 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.03 | |
| 10 | $ 0.88 | |||
| 25 | $ 0.80 | |||
| 50 | $ 0.75 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.57 | |||
| 500 | $ 0.54 | |||
| Digi-Reel® | 1 | $ 1.03 | ||
| 10 | $ 0.88 | |||
| 25 | $ 0.80 | |||
| 50 | $ 0.75 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.57 | |||
| 500 | $ 0.54 | |||
| Tape & Reel (TR) | 1000 | $ 0.49 | ||
| 3000 | $ 0.48 | |||
| 5000 | $ 0.46 | |||
| 10000 | $ 0.45 | |||
Description
General part information
PA4307.102NLT
1 µH Unshielded Wirewound Inductor 7.5 A 30mOhm Max Nonstandard
