NPMG1212E12MR68TRF
ActiveNIC Components Corp
FIXED IND SMT 680 NH 7 A 16MOHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NPMG1212E12MR68TRF |
|---|---|
| Current - Saturation (Isat) | 7 A |
| Current Rating (Amps) | 7 A |
| DC Resistance (DCR) | 16 mOhm |
| Frequency - Self Resonant | 49 MHz |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Inductance | 0.68 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.29 | |
Description
General part information
NPMG1212E12MR68TRF

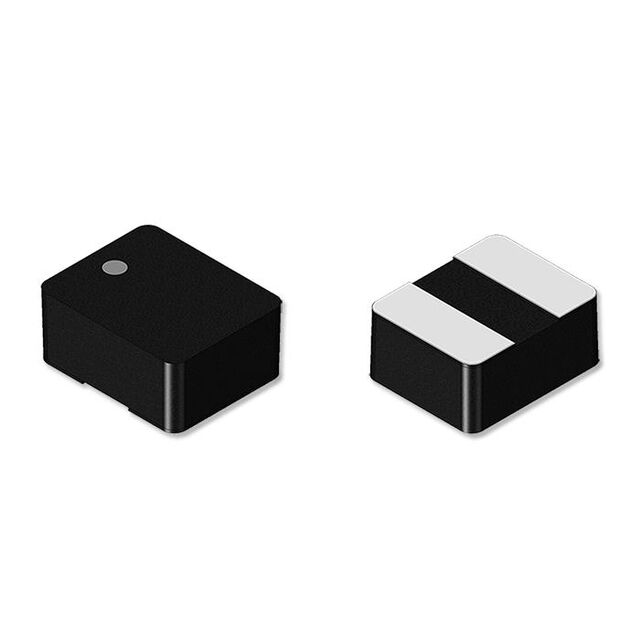

680 nH Shielded Molded Inductor 7 A 16mOhm Max Nonstandard
