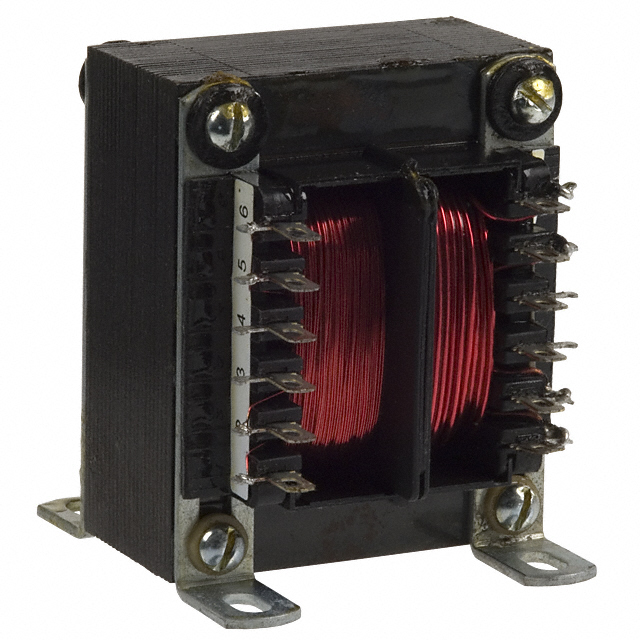

A41-175-230
ActiveSignal Transformer
PWR XFMR LAMINATED 175VA CHAS MT
Deep-Dive with AI
Search across all available documentation for this part.
A41-175-230
ActiveSignal Transformer
PWR XFMR LAMINATED 175VA CHAS MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A41-175-230 |
|---|---|
| Center Tap | False |
| Current - Output (Max) | 760 mA, 1.52 A |
| Height - Seated (Max) [Max] | 95.3 mm |
| Mounting Type | Chassis Mount |
| Power - Max [Max] | 175 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension [x] | 79.4 mm |
| Size / Dimension [y] | 79.7 mm |
| Termination Style | Solder, Quick Connect |
| Type | Laminated Core |
| Voltage - Isolation | 4000 Vrms |
| Voltage - Primary | 115 V, 230 V |
| Voltage - Secondary (Full Load) [custom] | 115 V |
| Voltage - Secondary (Full Load) [custom] | 230 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 44.15 | |
| 10 | $ 39.03 | |||
| 25 | $ 37.67 | |||
| 50 | $ 36.82 | |||
| 100 | $ 36.10 | |||
| 250 | $ 35.32 | |||
Description
General part information
A41-175-230
PWR XFMR LAMINATED 175VA CHAS MT
Documents
Technical documentation and resources
No documents available
