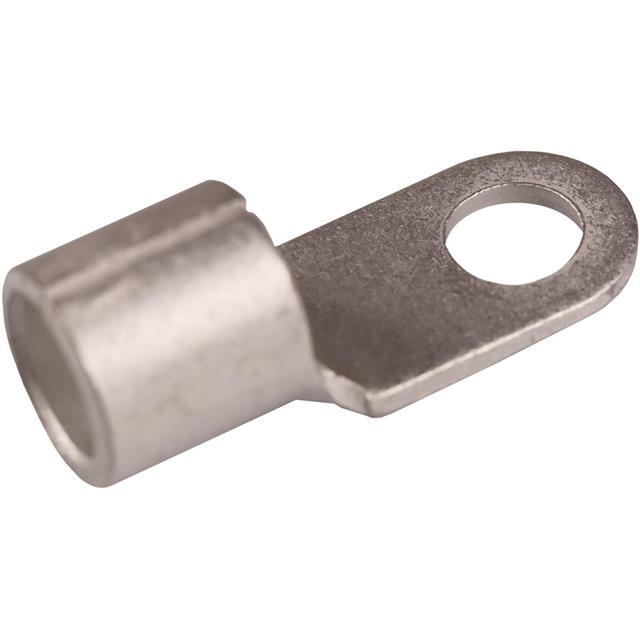

B25-10R
ActiveElpress Inc.
CONN RING 25 MM M10, 4AWG 3/8"
Deep-Dive with AI
Search across all available documentation for this part.
B25-10R
ActiveElpress Inc.
CONN RING 25 MM M10, 4AWG 3/8"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B25-10R |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | DIN 46234 |
| Insulation | Non-Insulated |
| Length - Overall [x] | 1.378 " |
| Length - Overall [x] | 35 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.059 in |
| Thickness | 1.5 mm |
| Width - Outer Edges [x] | 17.98 mm |
| Width - Outer Edges [x] | 0.708 in |
| Wire Gauge | 4 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 1.76 | |
Description
General part information
B25-10R
Ring Terminal Connector M10 Stud Circular 4 AWG Crimp
Documents
Technical documentation and resources
No documents available
