B0309
ActiveArducam

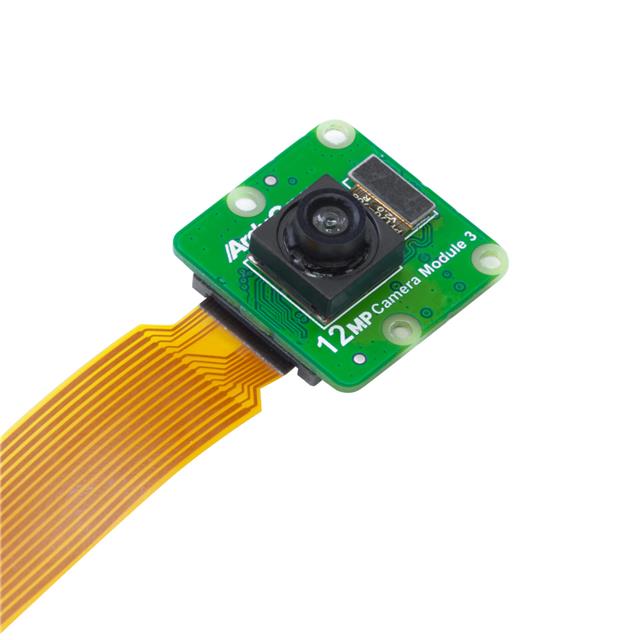

ARDUCAM 12MP IMX708 102 WIDE ANG
Deep-Dive with AI
Search across all available documentation for this part.
B0309
ActiveArducam
ARDUCAM 12MP IMX708 102 WIDE ANG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B0309 |
|---|---|
| Height (Max) | 11.5 mm |
| Height (Max) [Max] | 0.453 in |
| Interface | CSI-2, MIPI |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Pixel Size [x] | 1.4 µm |
| Pixel Size [y] | 1.4 µm |
| Resolution [x] | 4608 |
| Resolution [y] | 2592 |
| Sensor | IMX708 |
| Shutter | Rolling |
| Size / Dimension | 0.939 in, 0.984 in |
| Size / Dimension | 23.86 mm, 25 mm |
| Type | CMOS |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 60.07 | |
| 5 | $ 50.66 | |||
| 10 | $ 47.09 | |||
| 25 | $ 42.74 | |||
| 50 | $ 39.72 | |||
| 100 | $ 36.92 | |||
Description
General part information
B0309
ARDUCAM 12MP IMX708 102 WIDE ANG
Documents
Technical documentation and resources
No documents available
